Athena 1800: Wisdom and Strategy

From the pantheon of innovation emerges the Athena 1800, a mechanical keyboard that channels the wisdom, strategy of its divine namesake.

Just as Athena was guided by the keen-eyed owl, her symbol of profound insight, this keyboard is designed as a precise tool to extend and inspire your intellect and creativity.

Athena 1800 is more than just an input device; it's a statement piece, a tool forged from myth and metal, prepared to experience typing wisdom.



Case Design

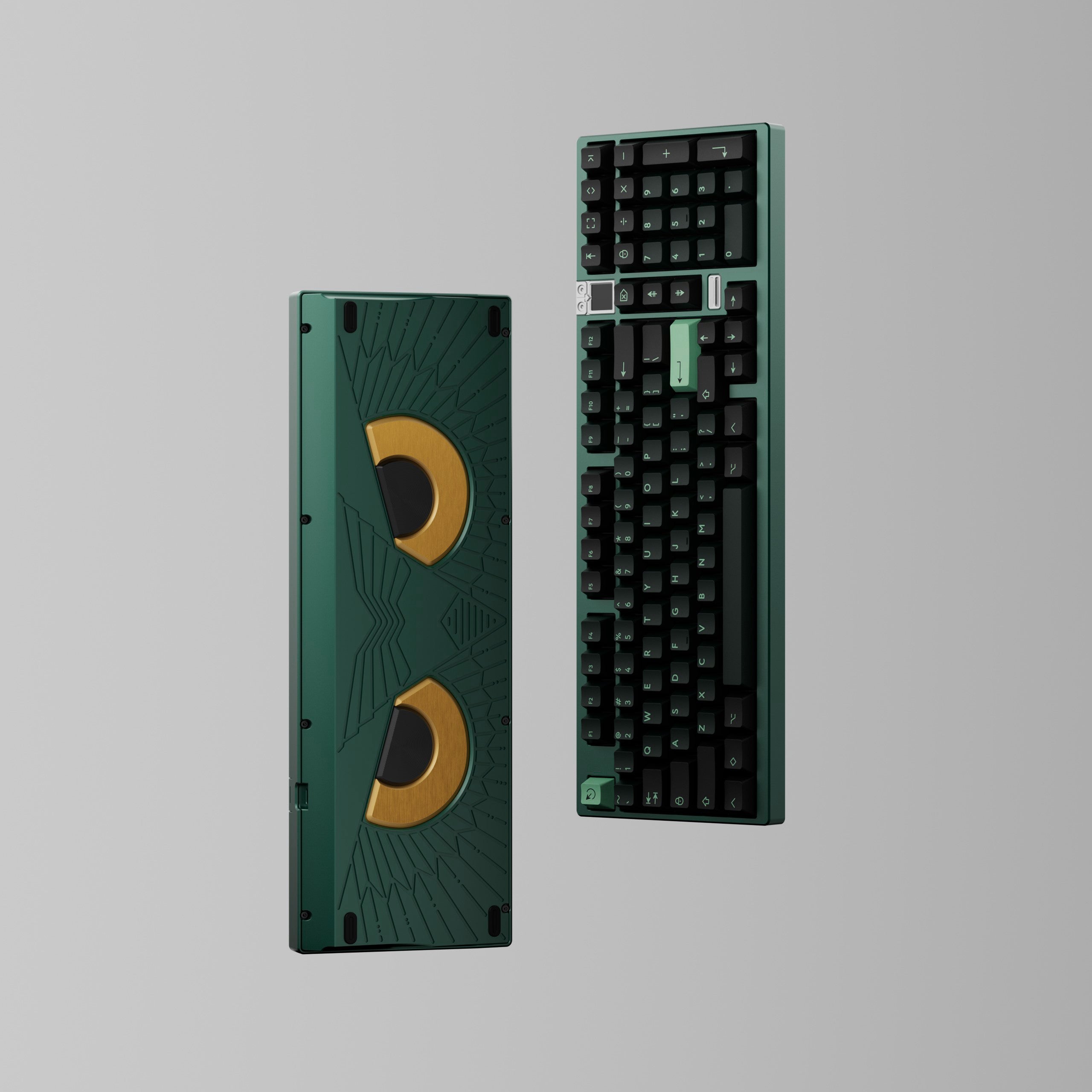

The Athena 1800 commands attention with an aesthetic that balances modern minimalism with powerful symbolism.

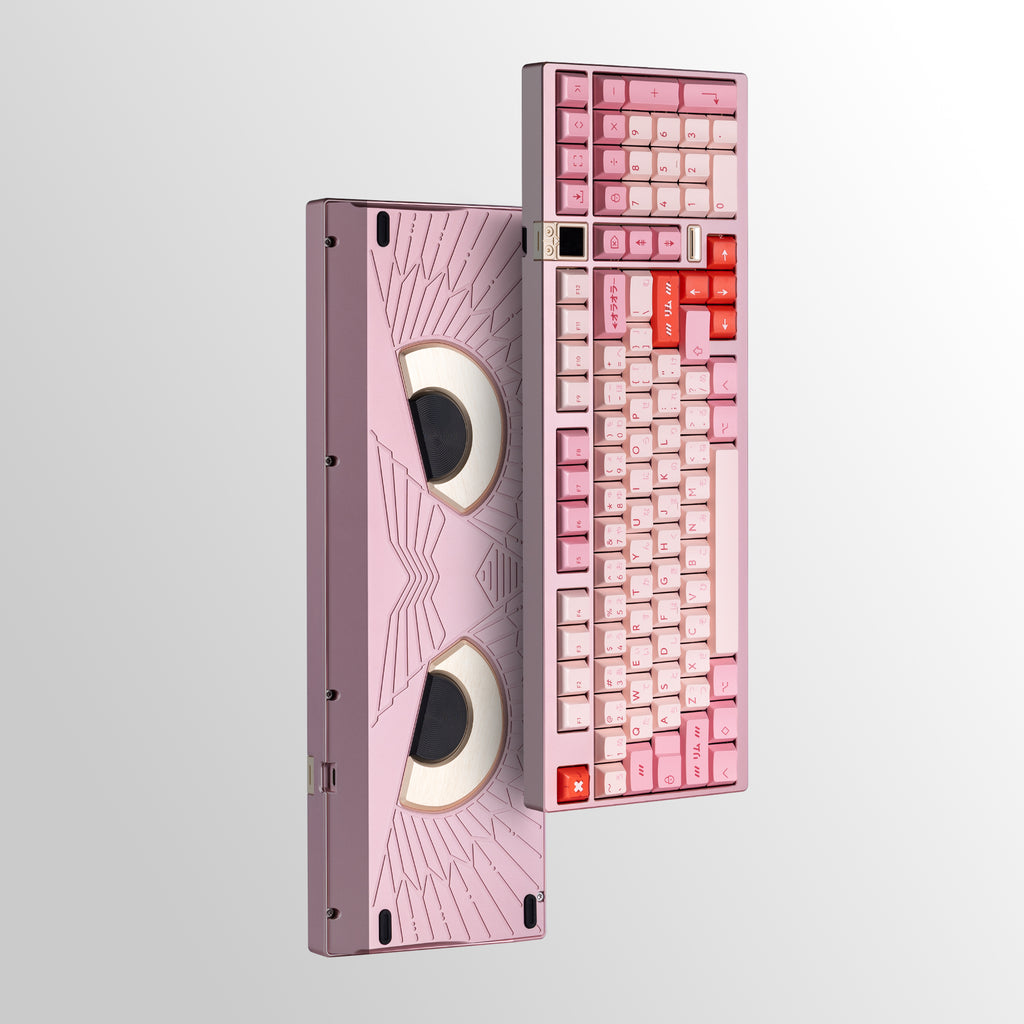

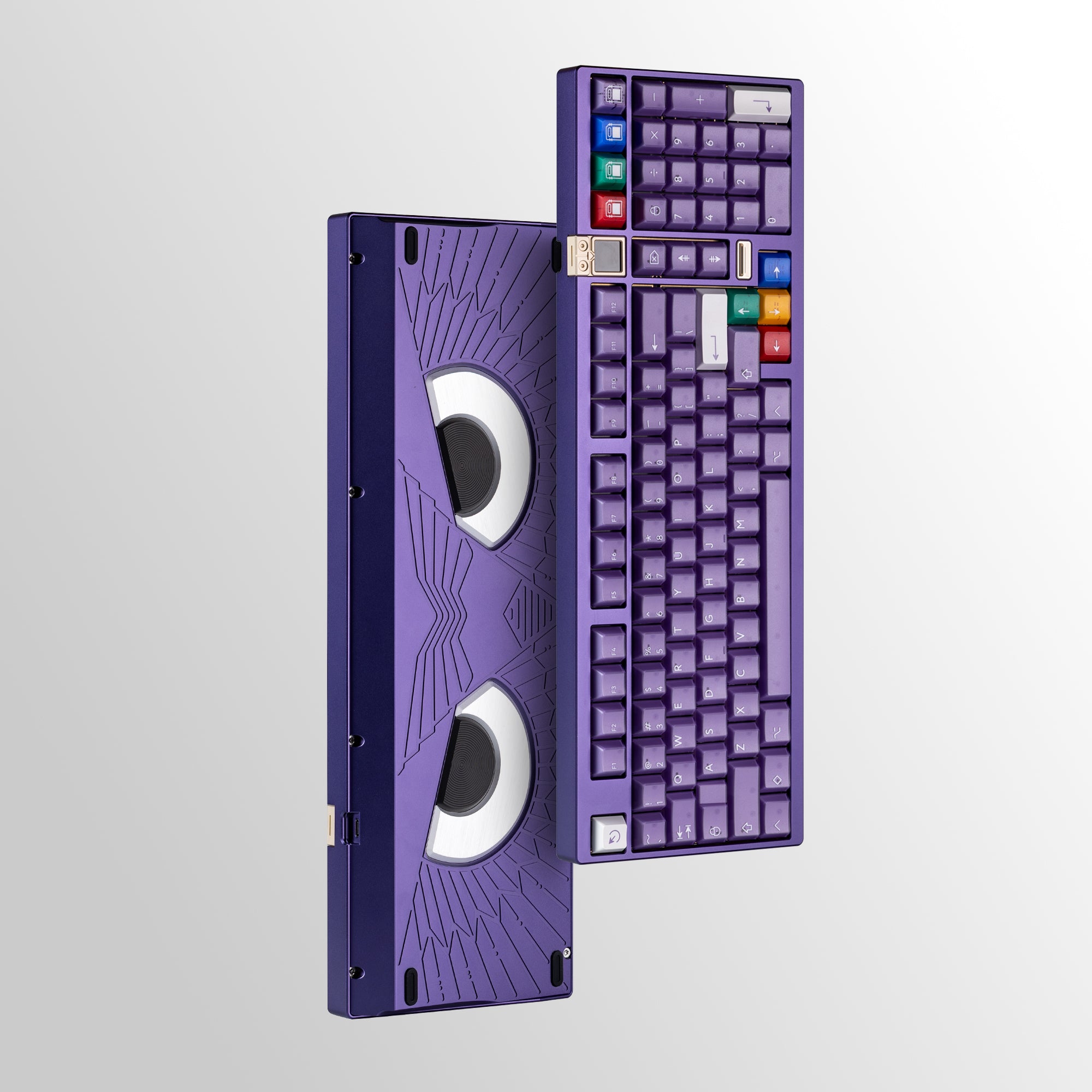

Front Facade: The top case features a clean, functional 1800 layout, seamlessly integrating a crystal-clear display screen. You can upload any GIF animation you like! Below this, an light diffuser accent subtly glows, hinting at the divine inspiration behind the design and adding a touch of ethereal beauty.

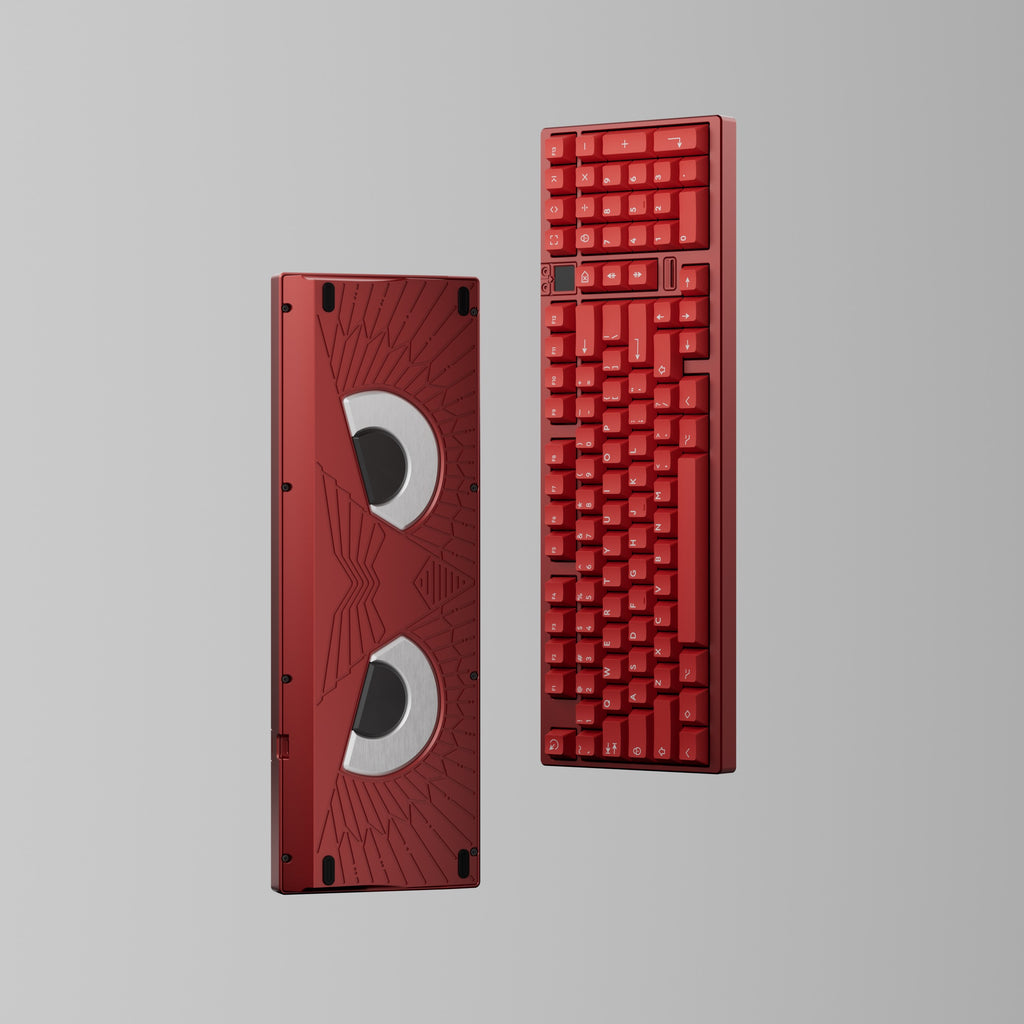

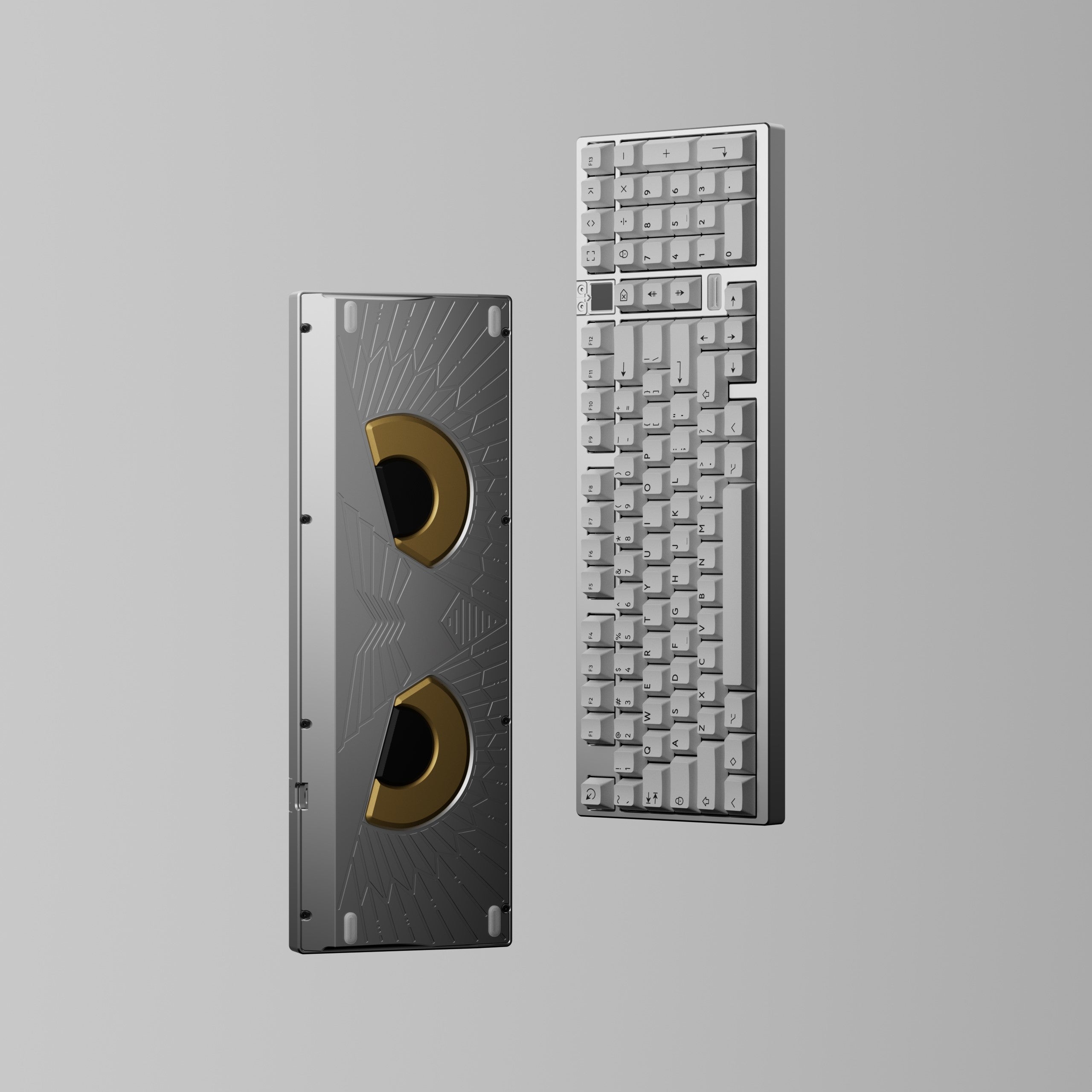

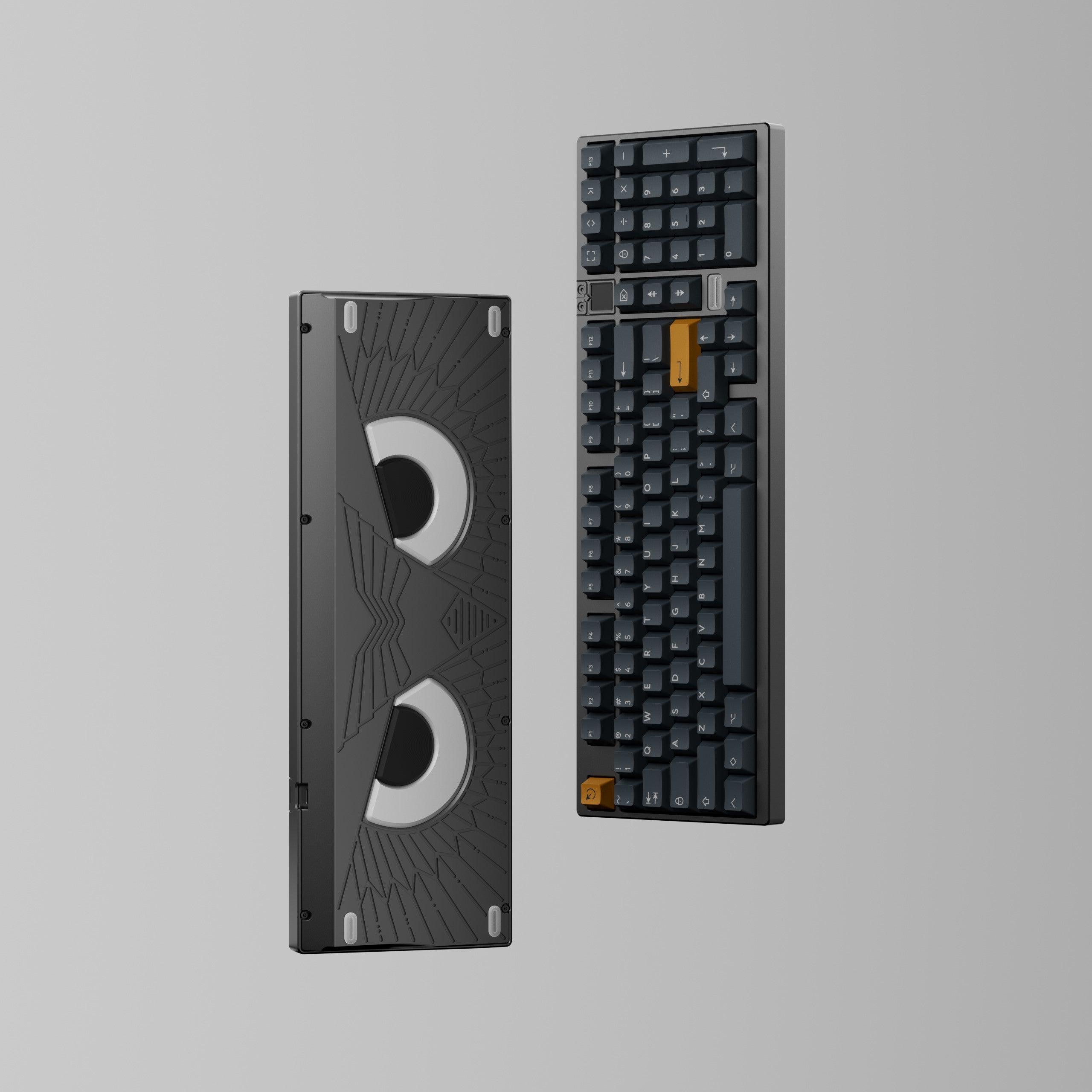

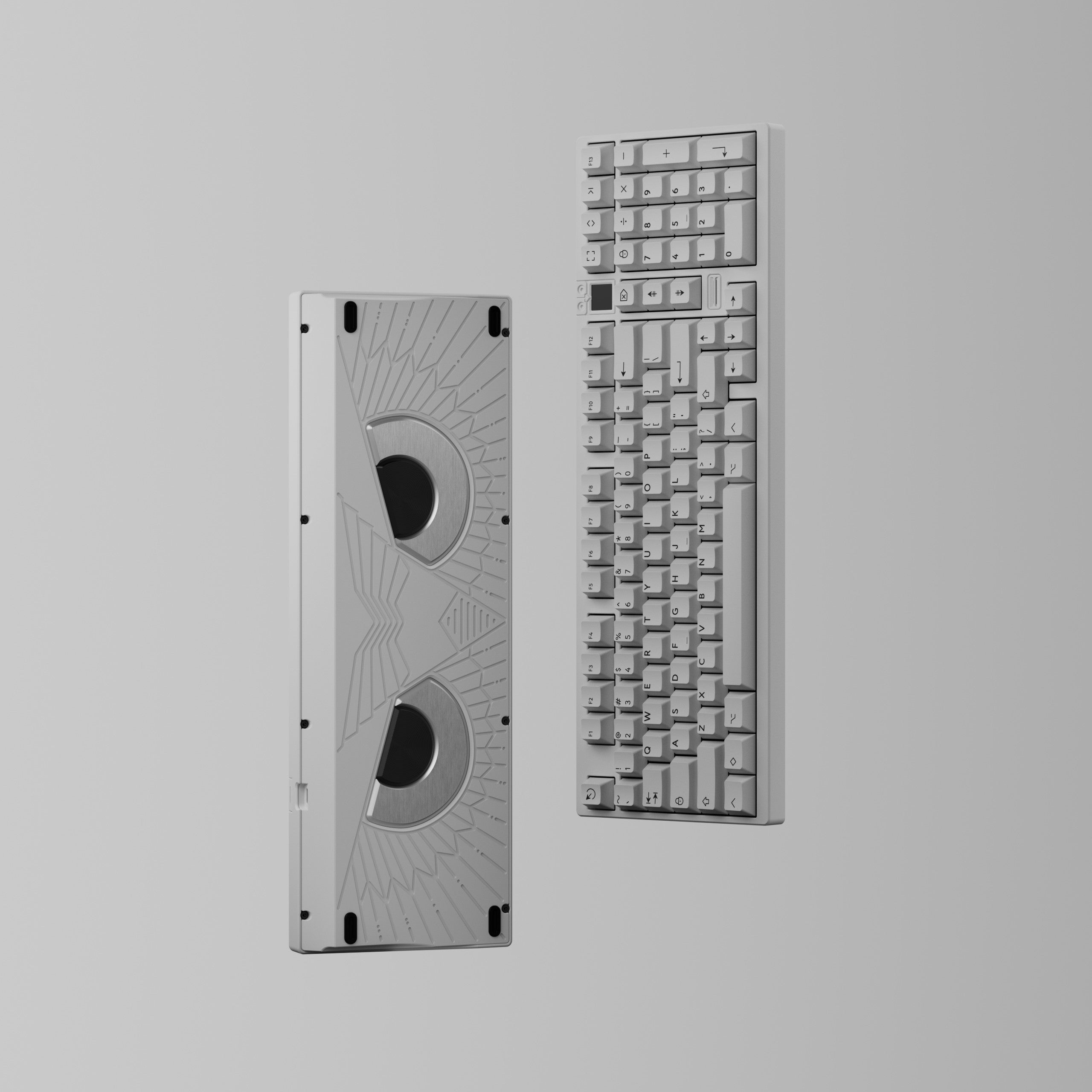

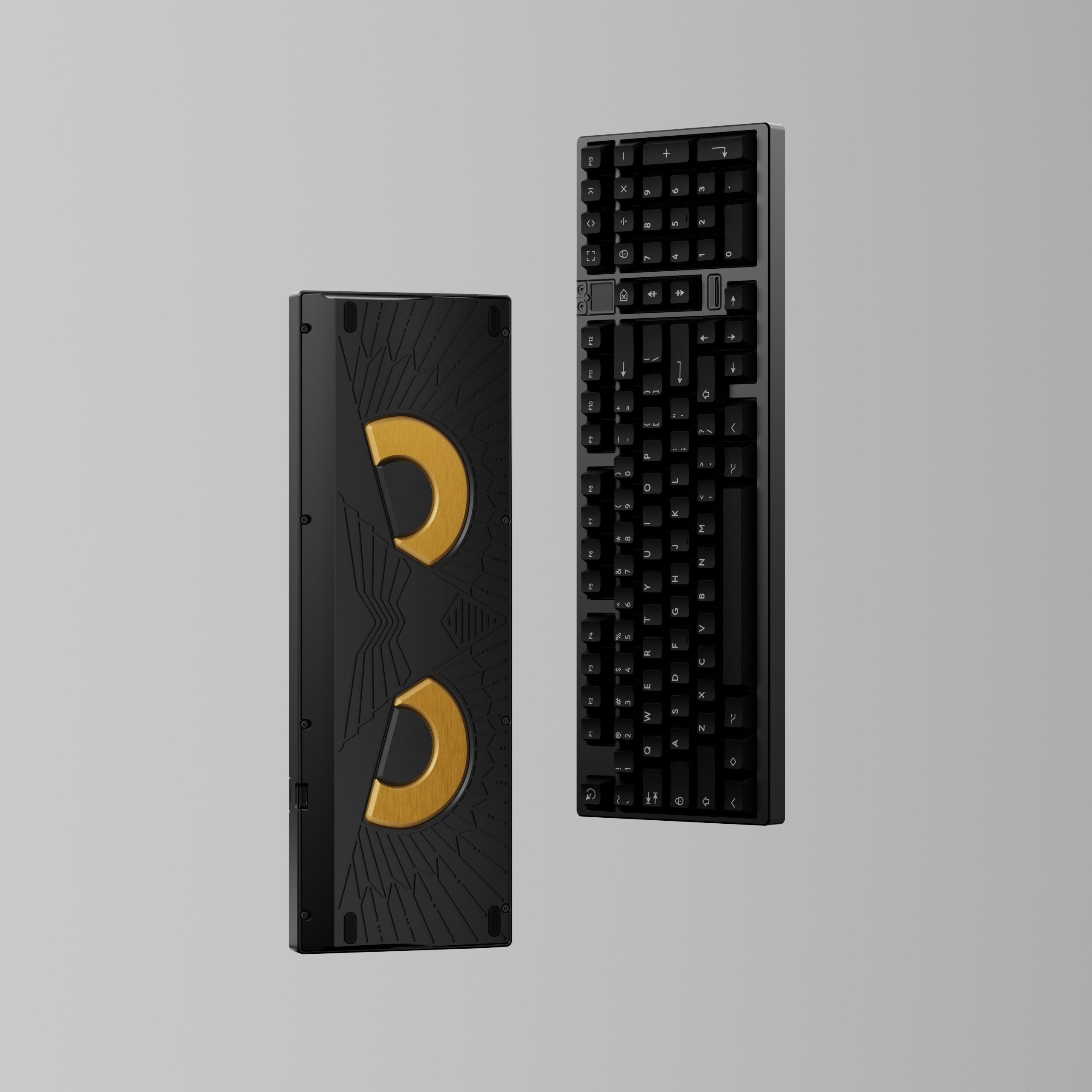

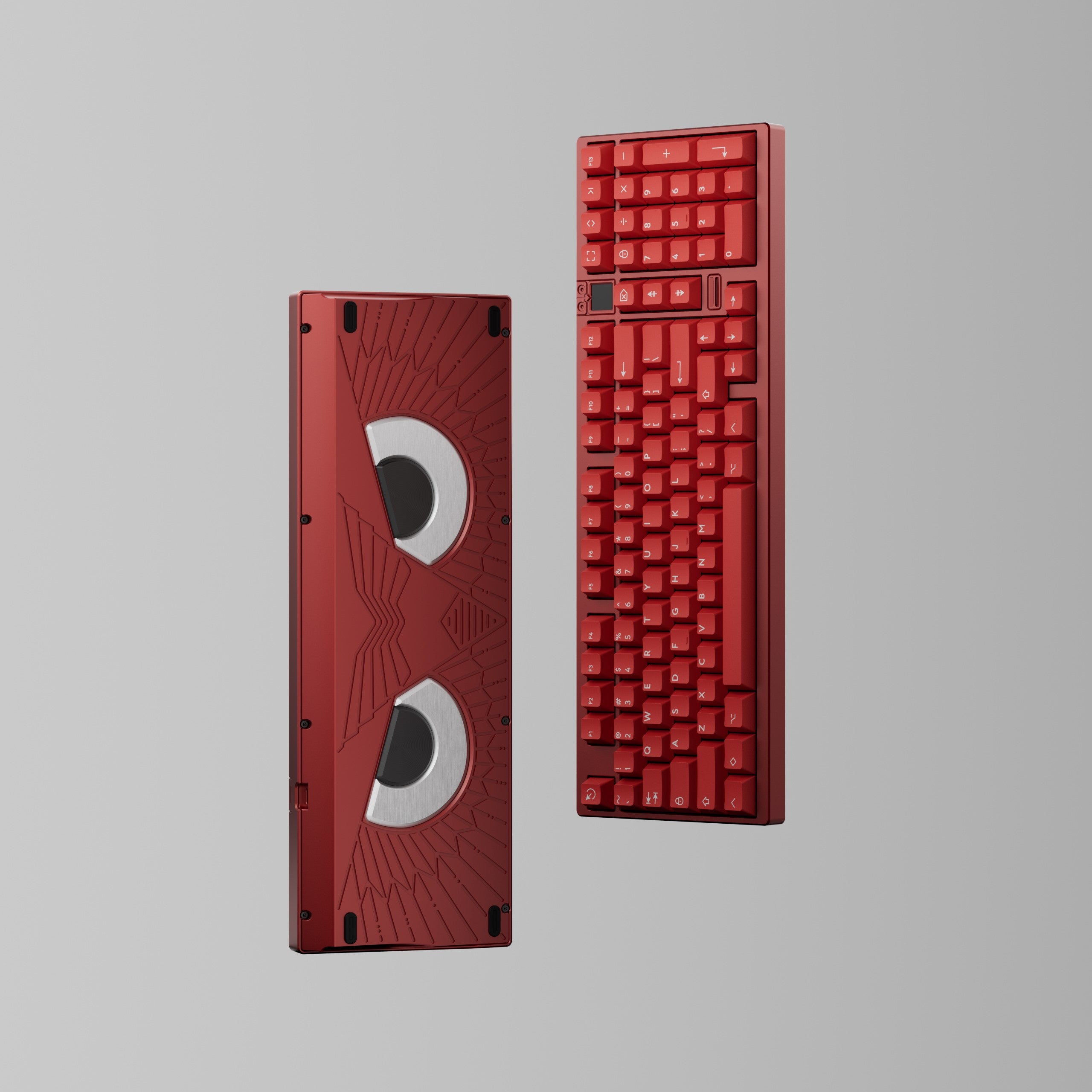

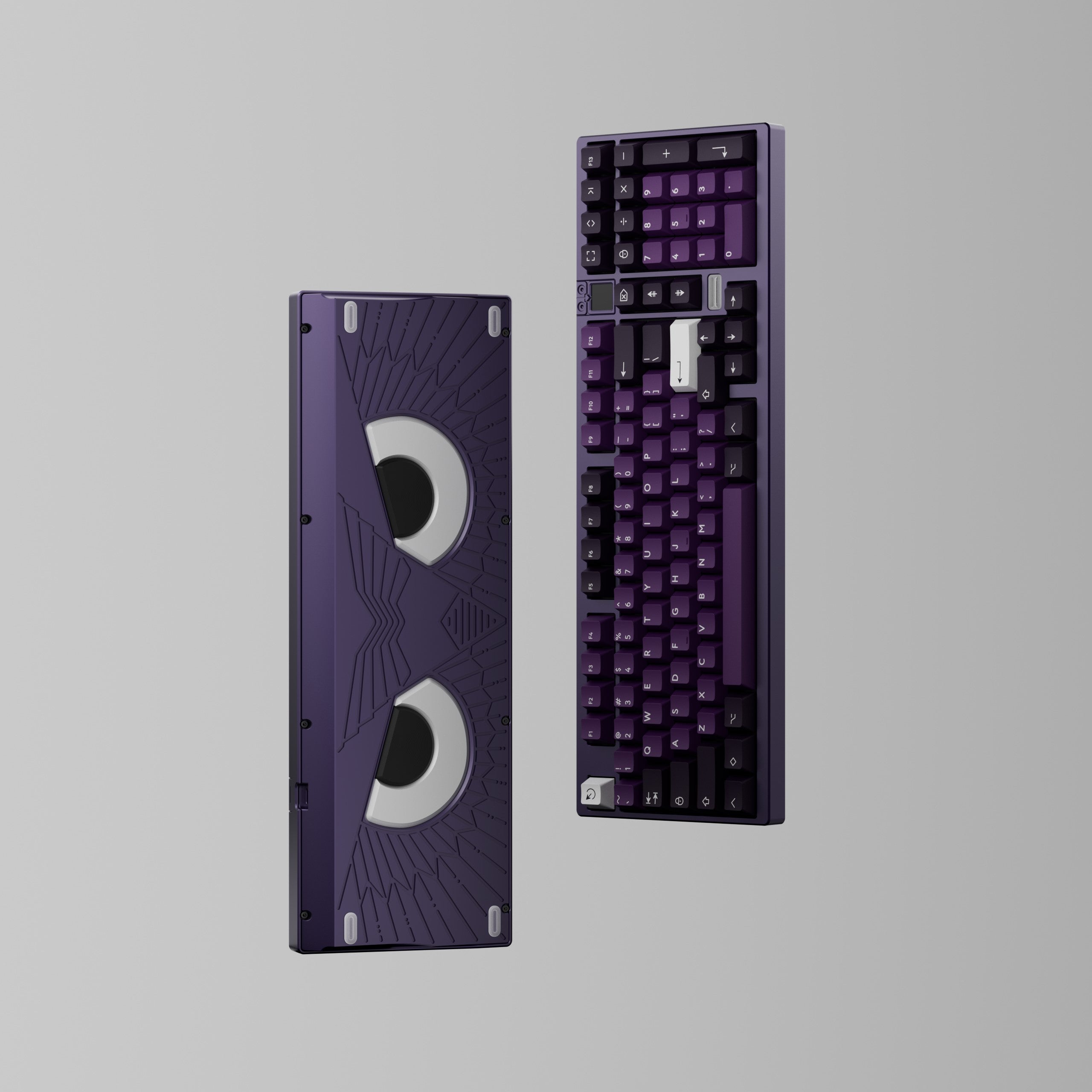

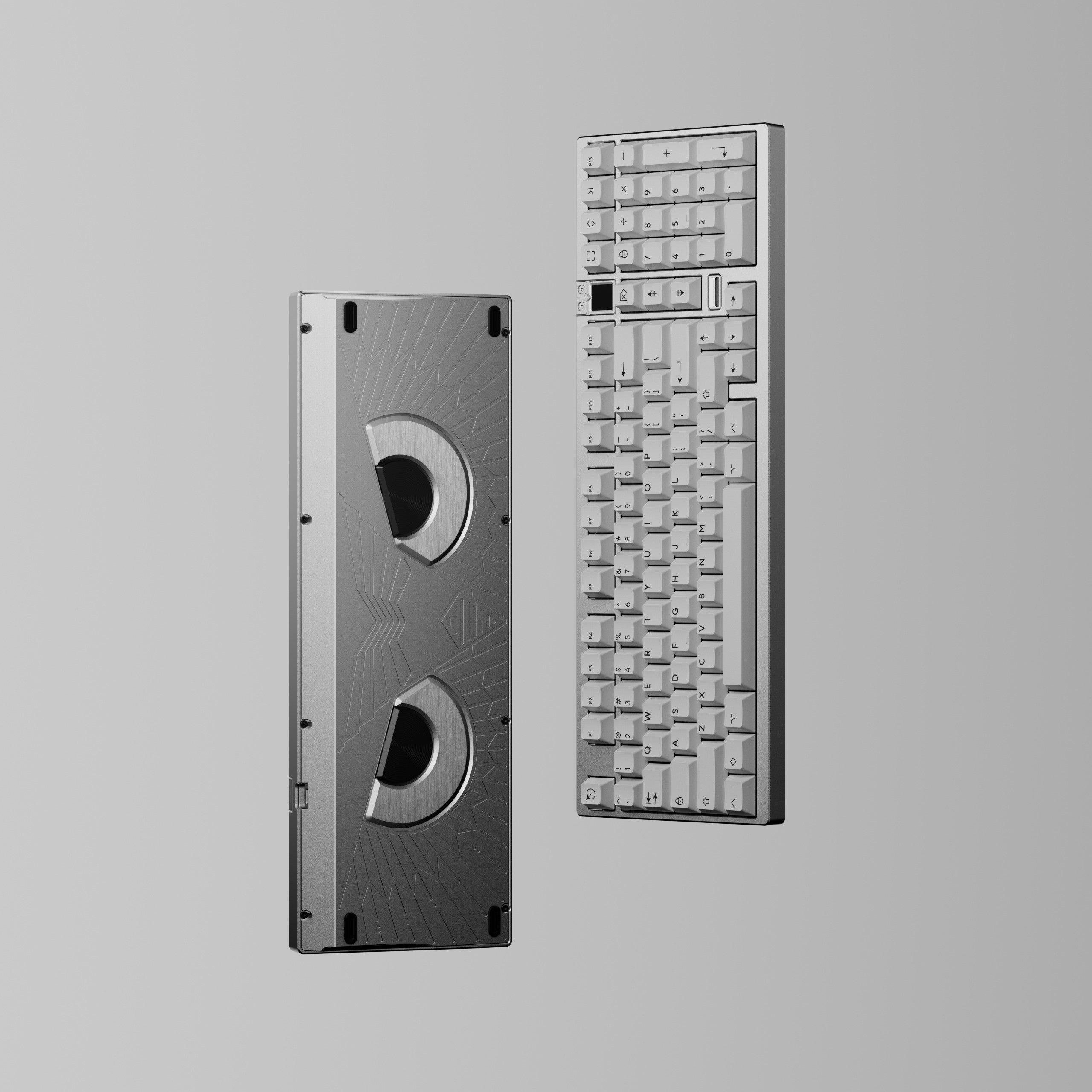

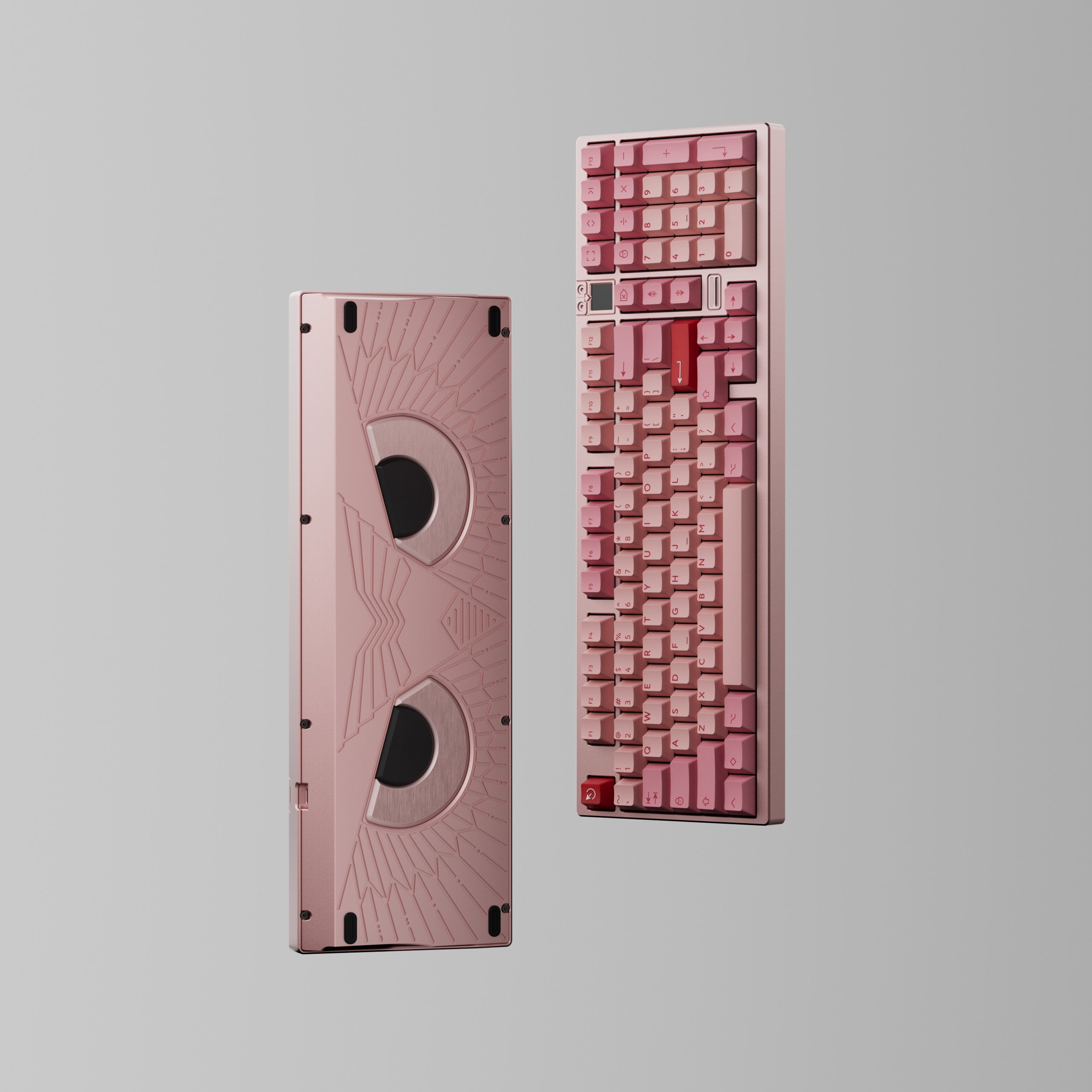

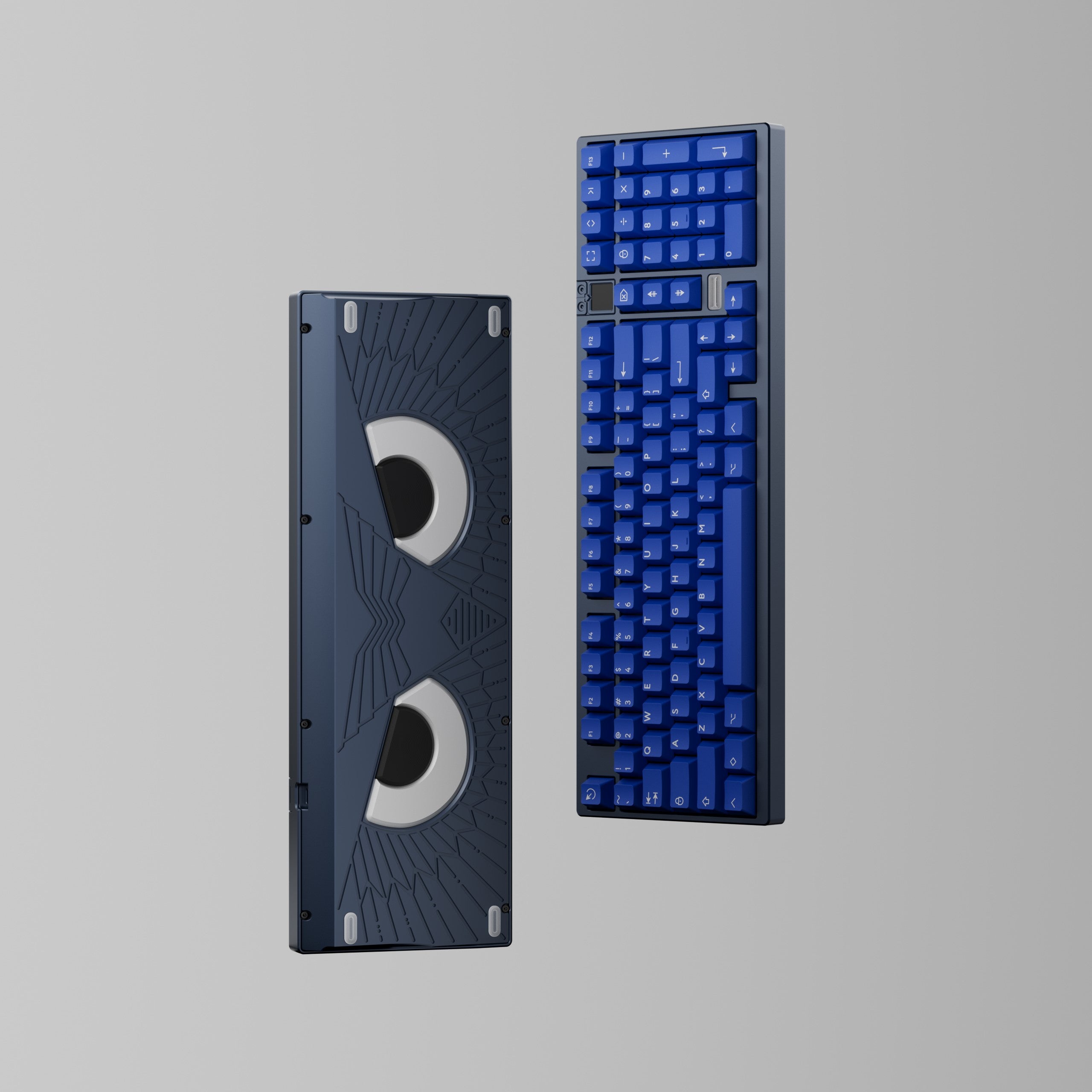

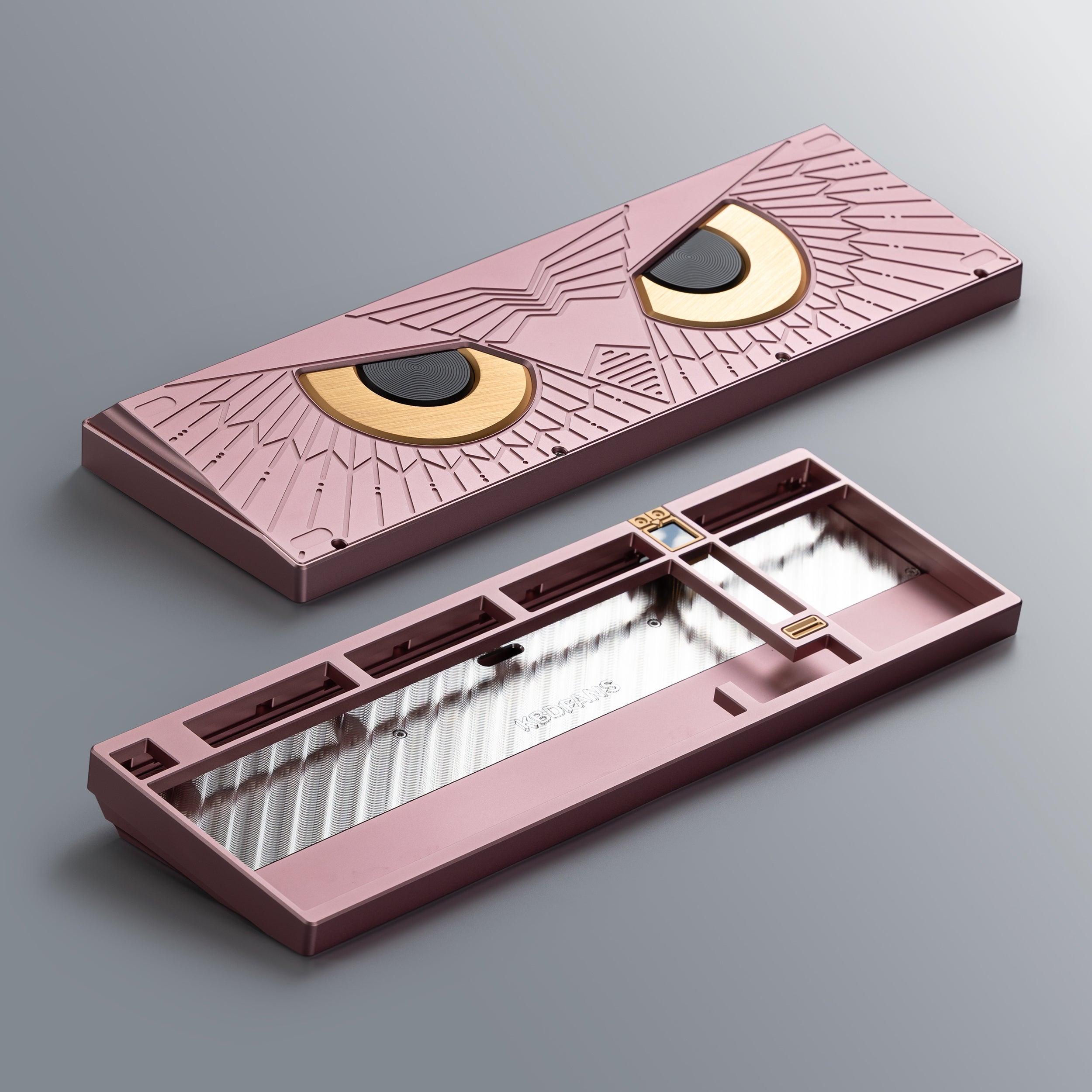

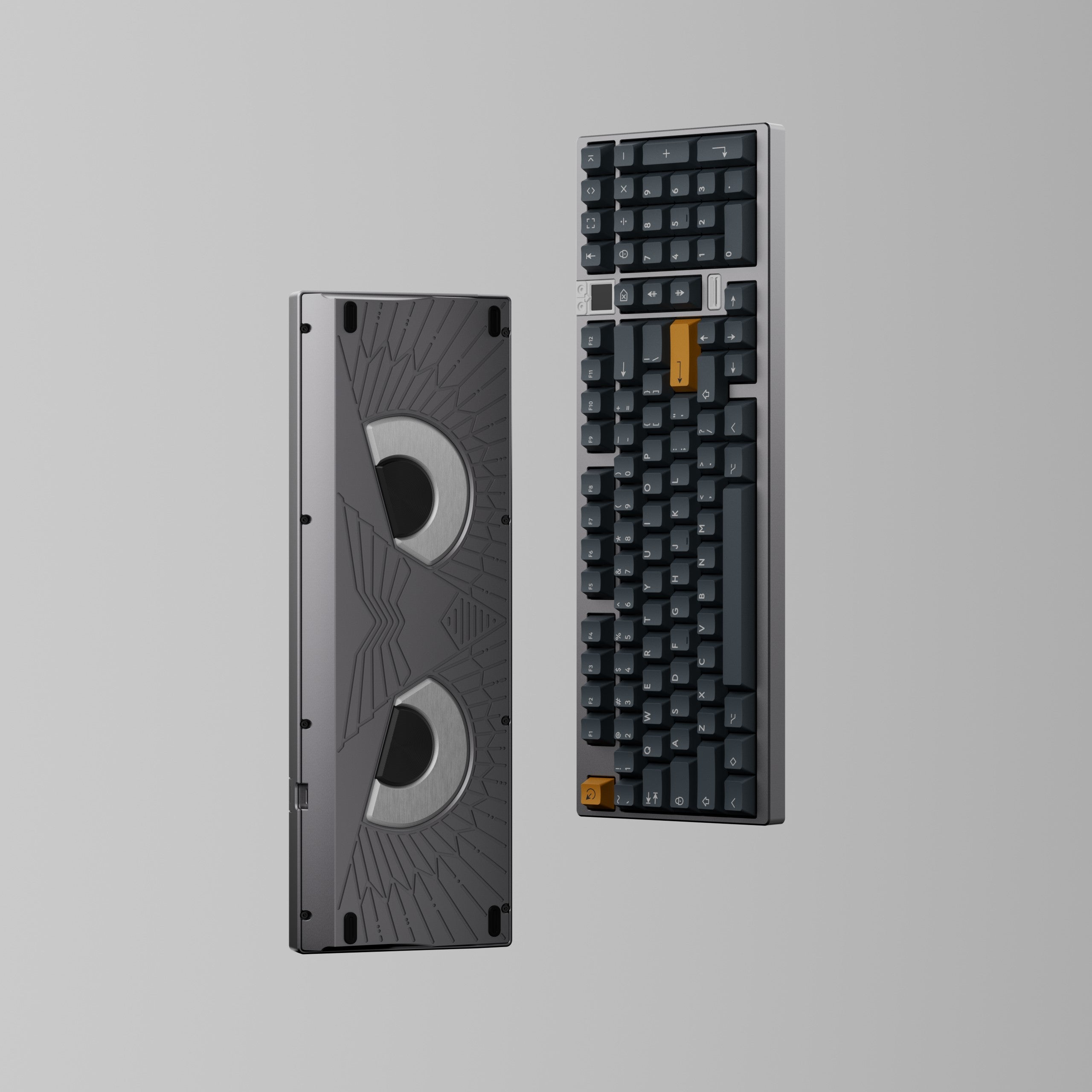

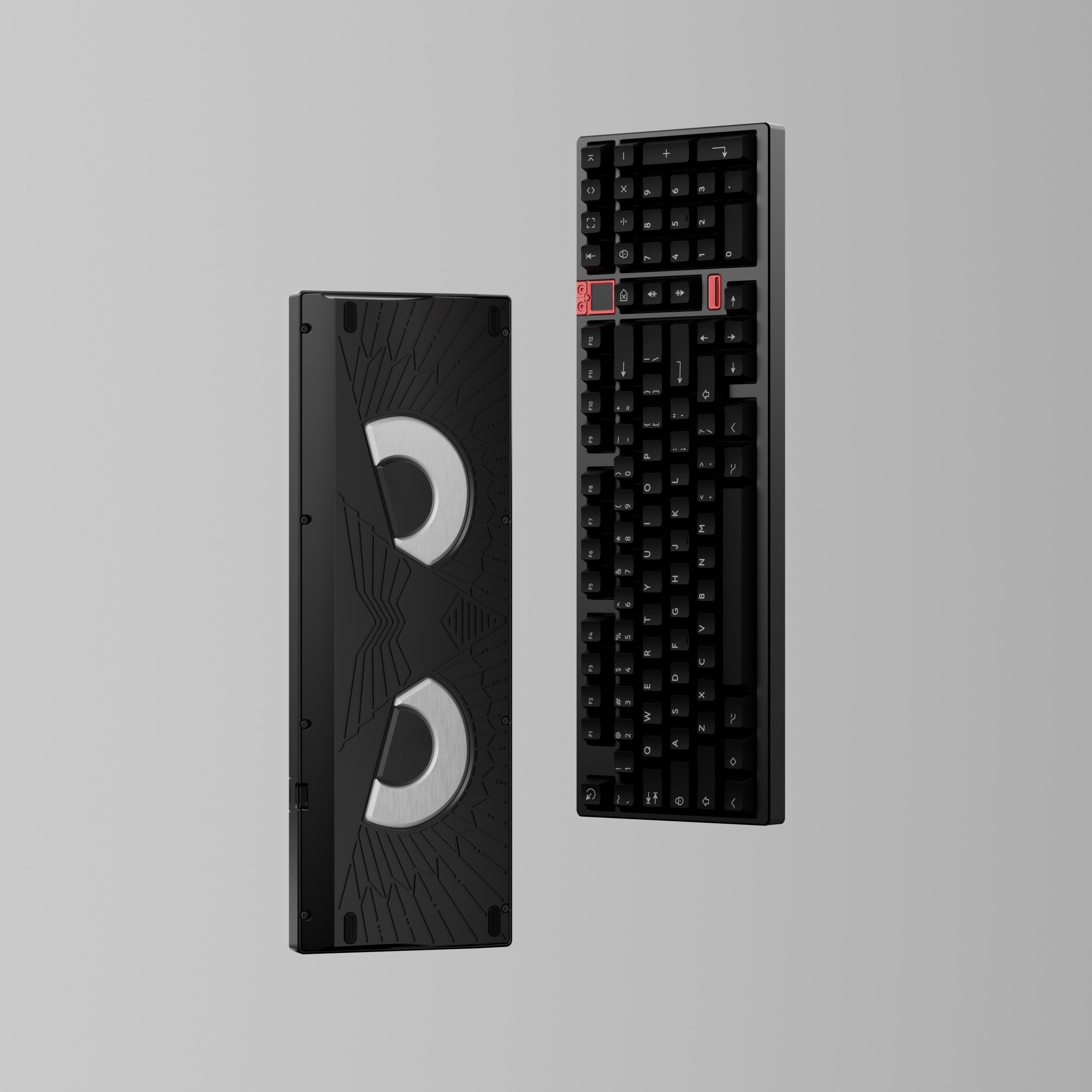

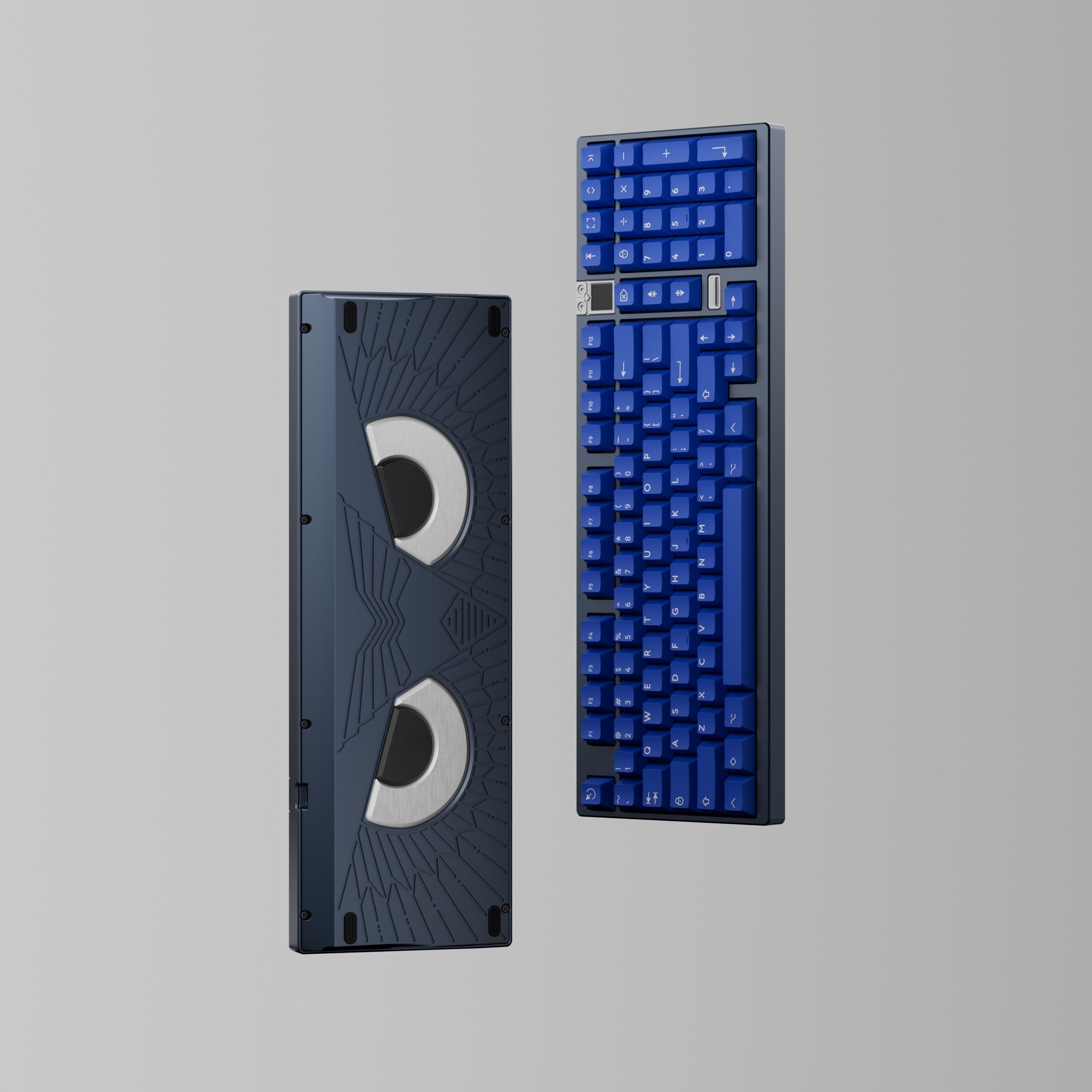

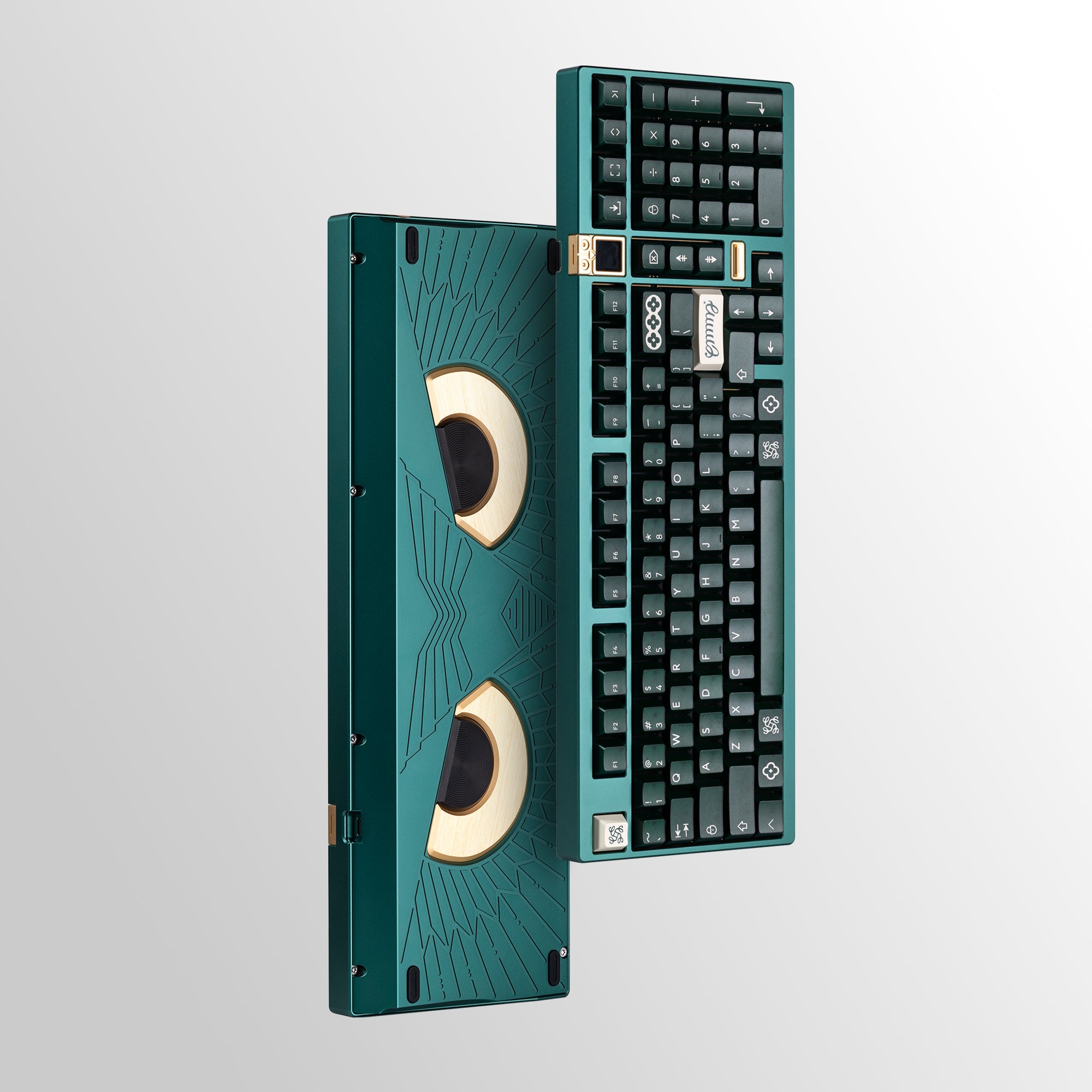

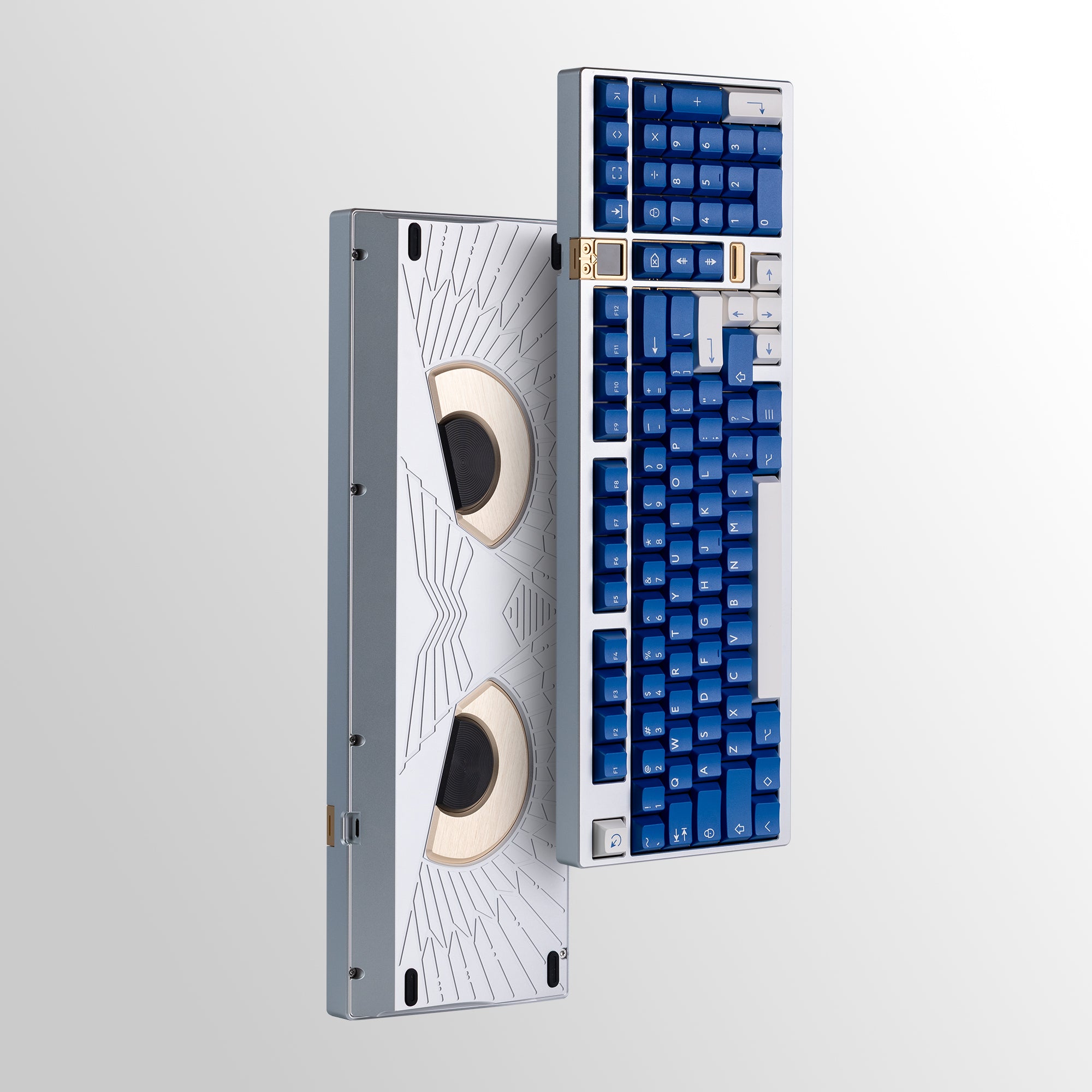

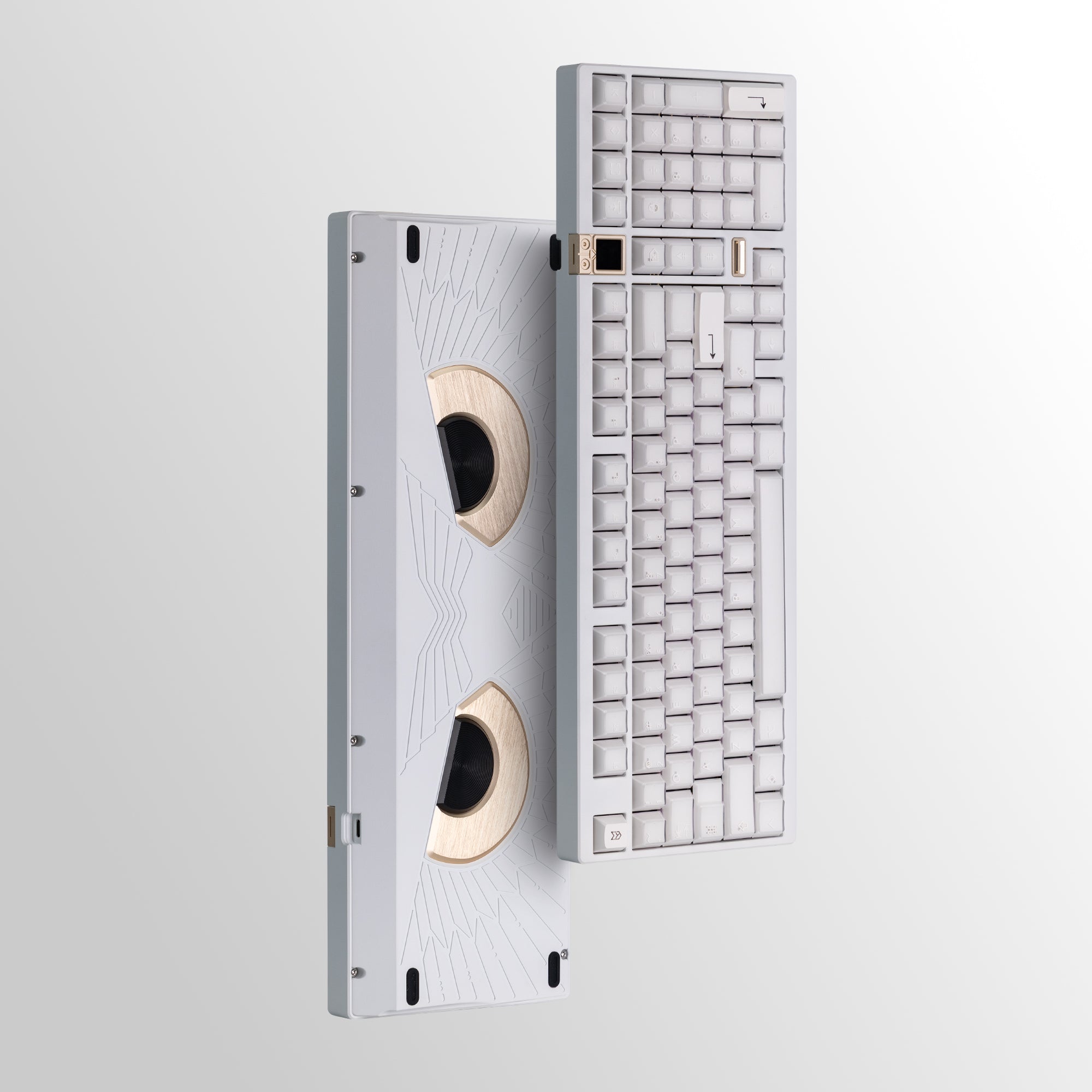

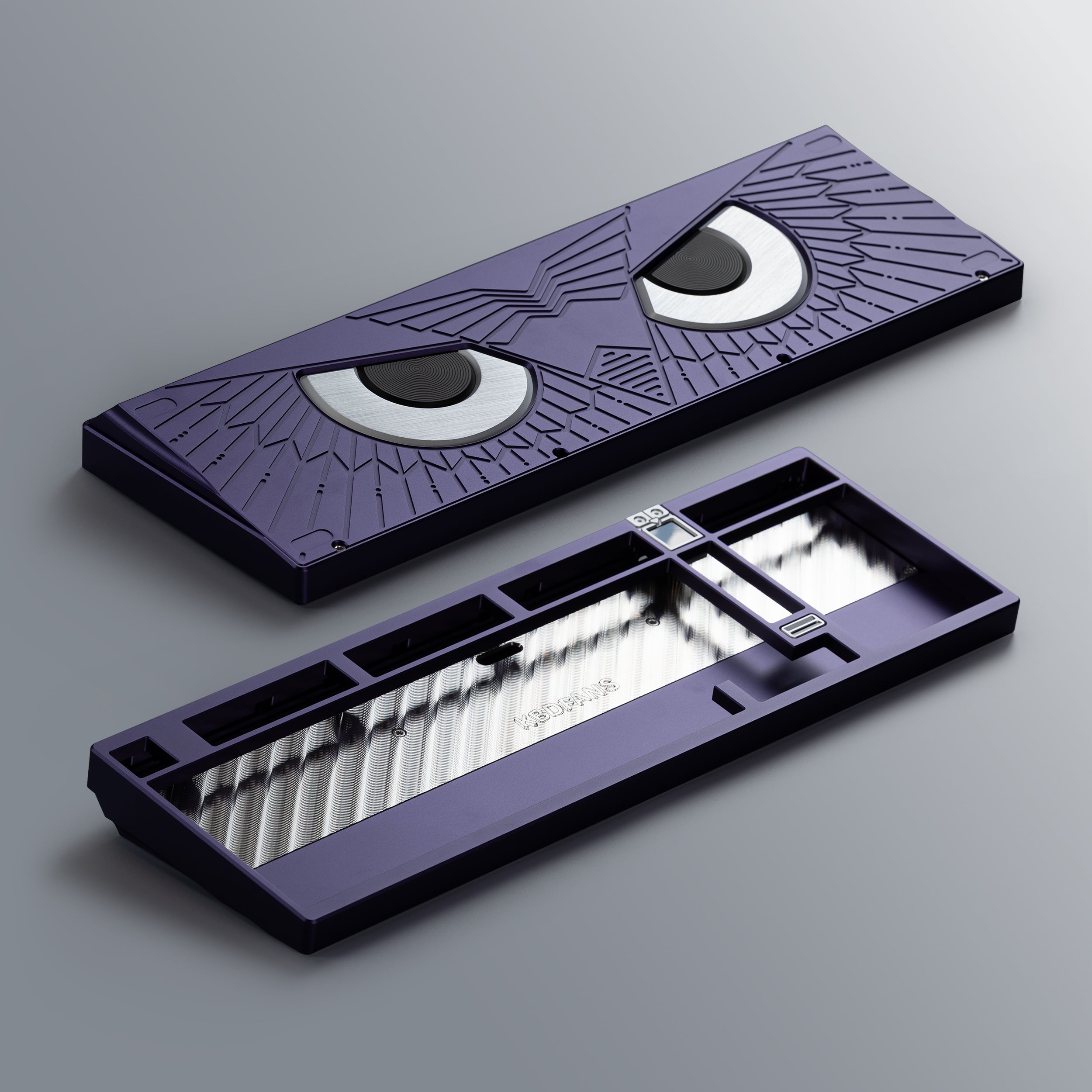

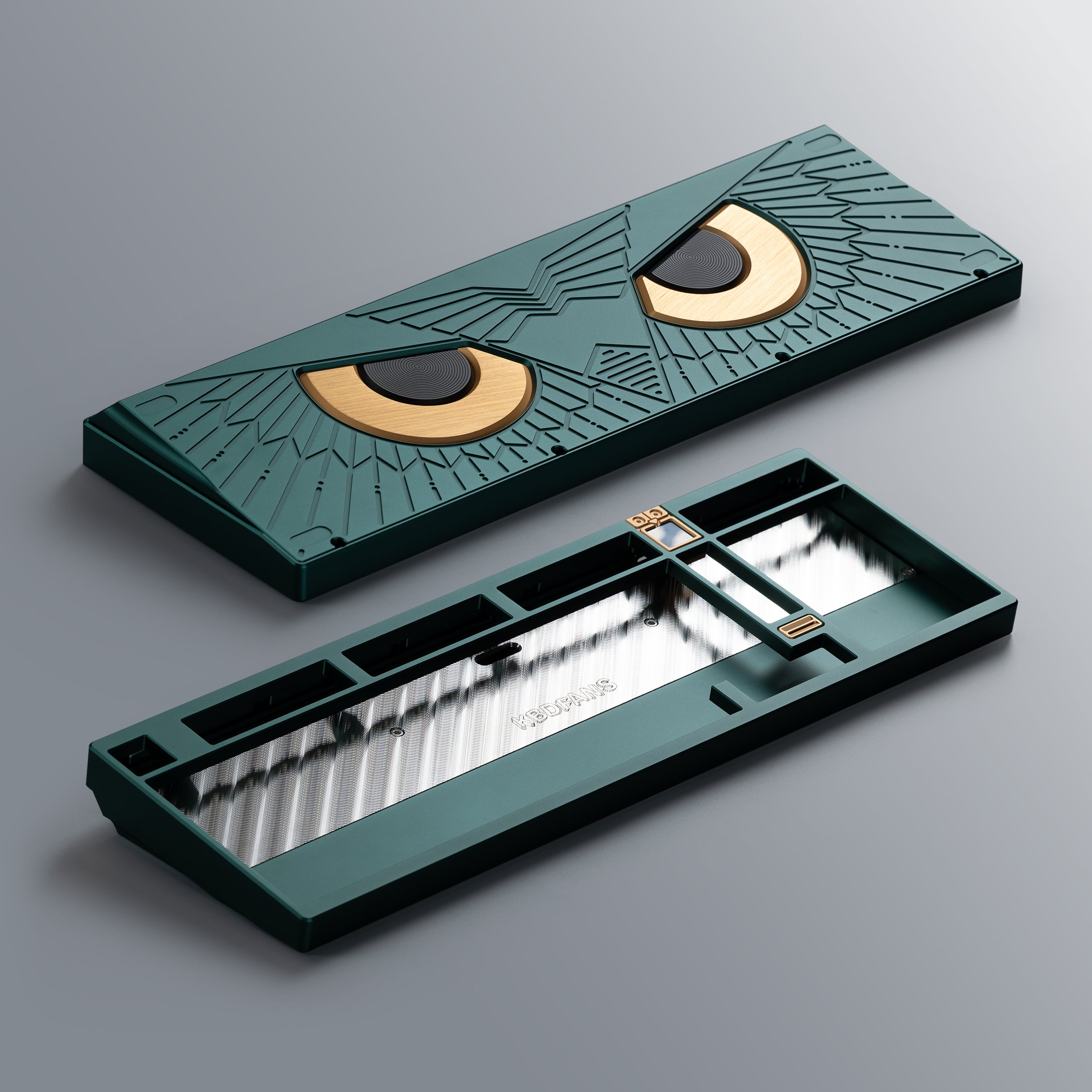

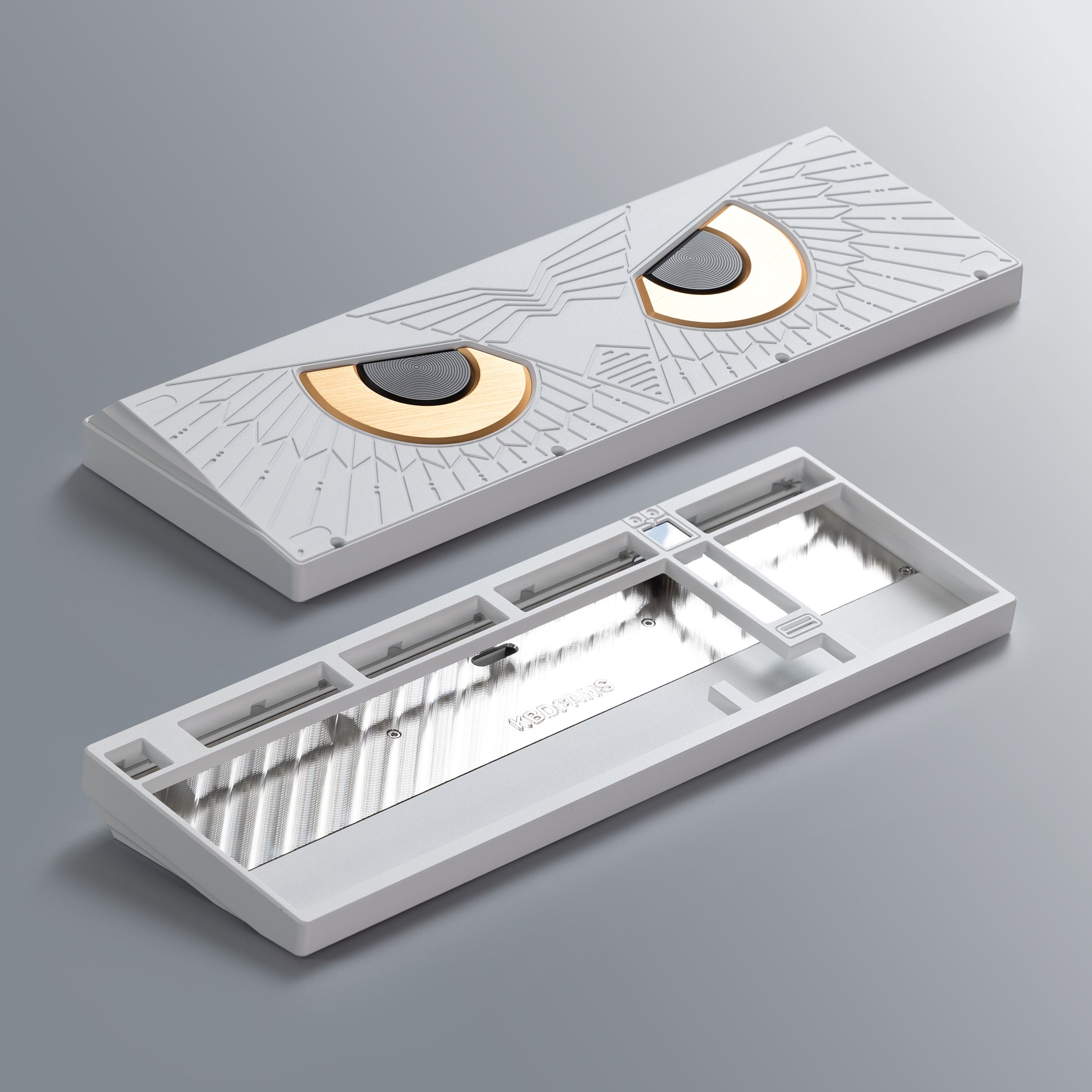

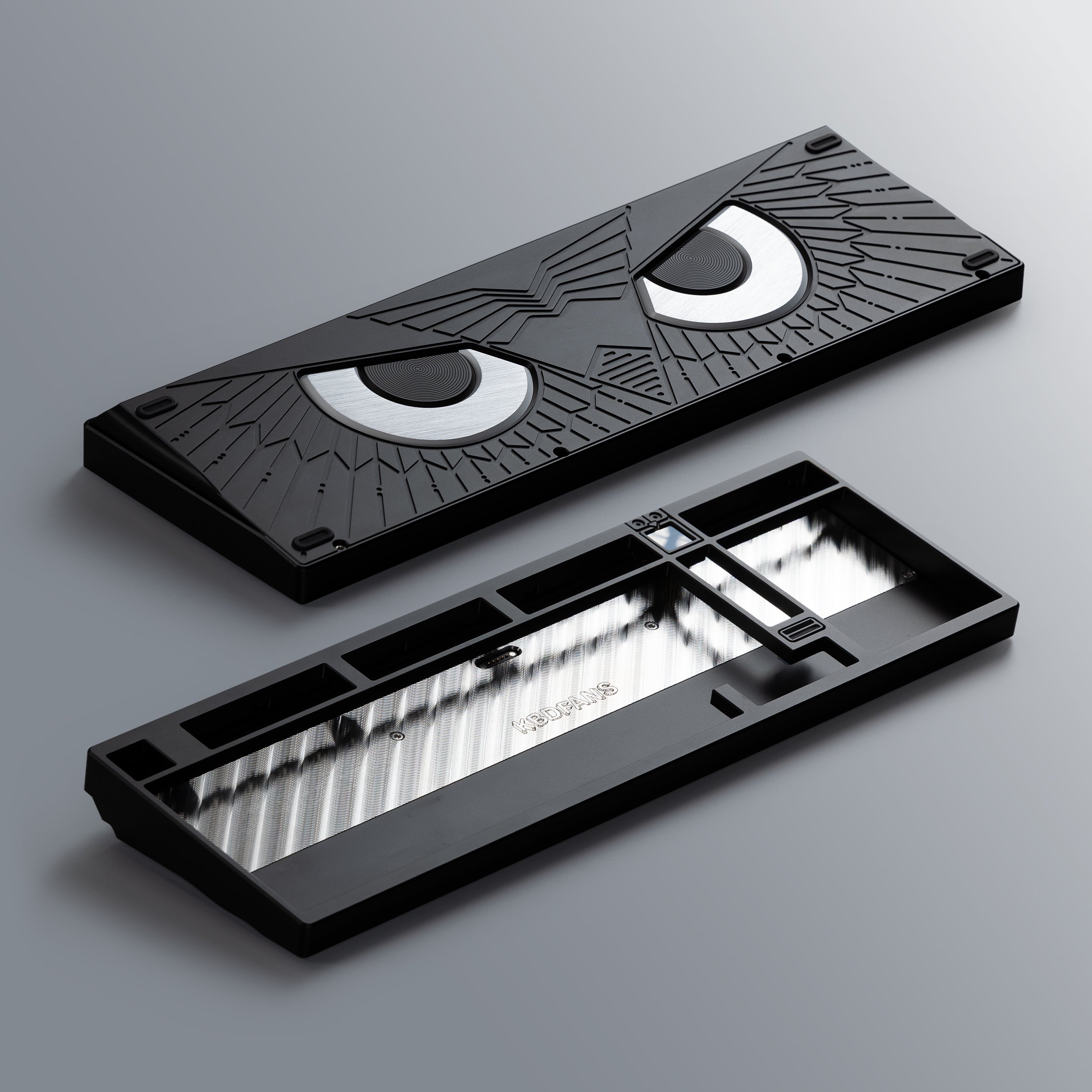

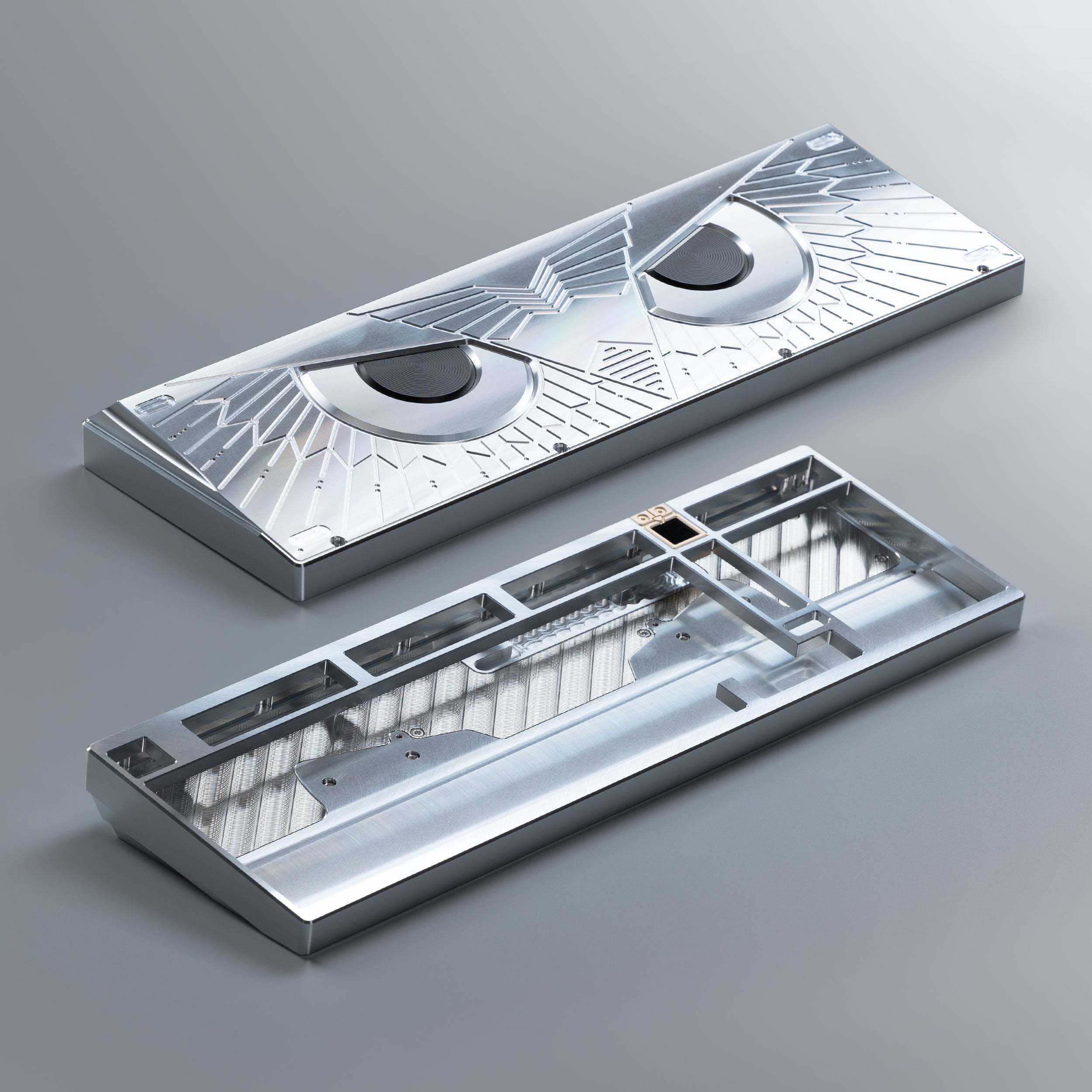

The Owl's Gaze (Backplate): The true masterpiece reveals itself on the underside. A stunning, full-sized owl visage is meticulously engraved across the entire backplate. Its piercing eyes and intricate feather-like details create a breathtaking tableau, transforming the keyboard into a work of art that speaks of vigilance and wisdom.

Engineered for a Divine Typing Experience

Beneath its striking exterior, the Athena 1800 is built with the discerning enthusiast in mind, offering a choice of premium typing experiences.

Top Mount
For a classic, firm, and direct typing feel with consistent feedback. Favored by those who appreciate a traditional, responsive typing experience and sound.

PCB Silicone Gasket
Delivering a softer, more cushioned, and acoustically refined typing sensation. This mount isolates the PCB, providing a gentler bottom-out and a more muted, thocky sound profile.

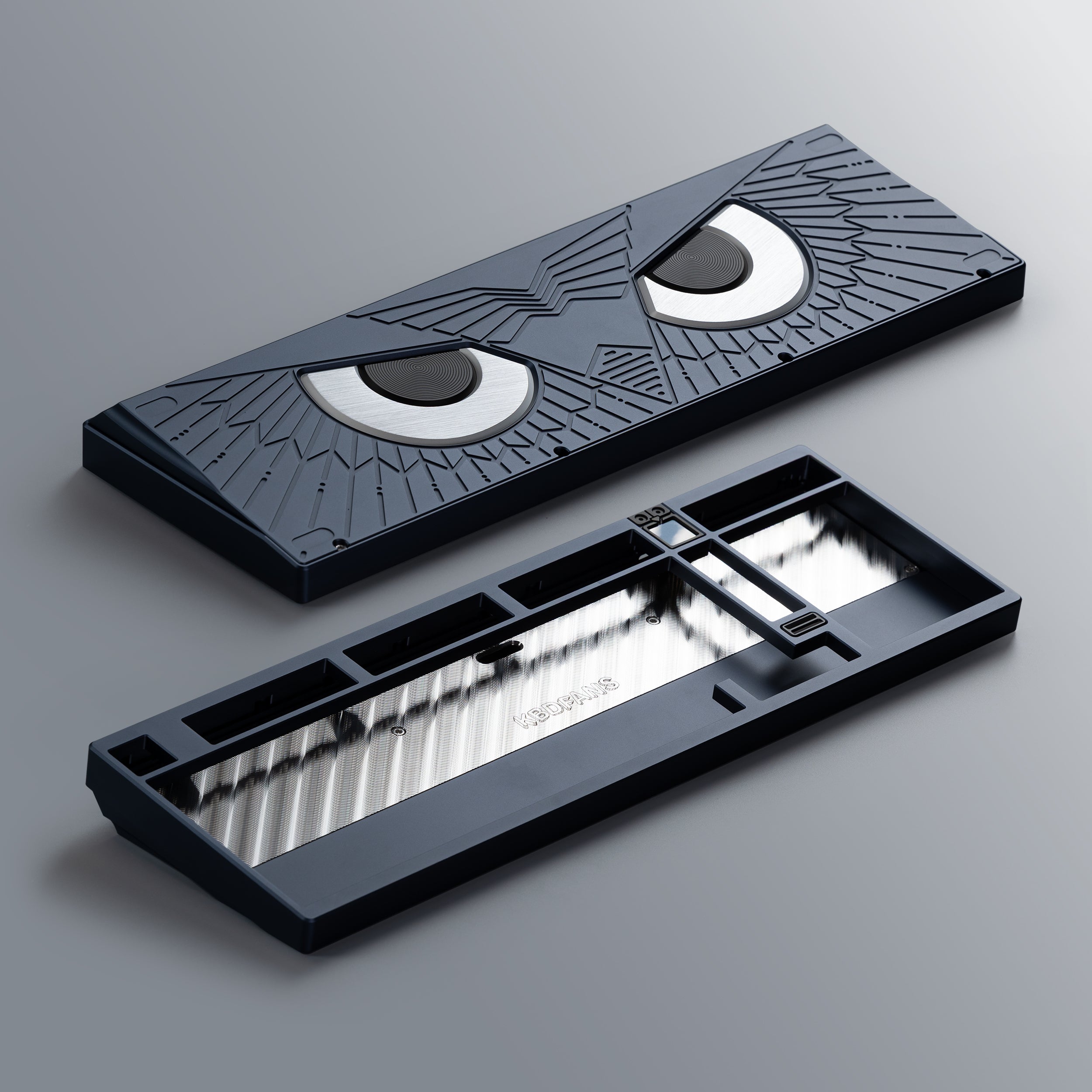

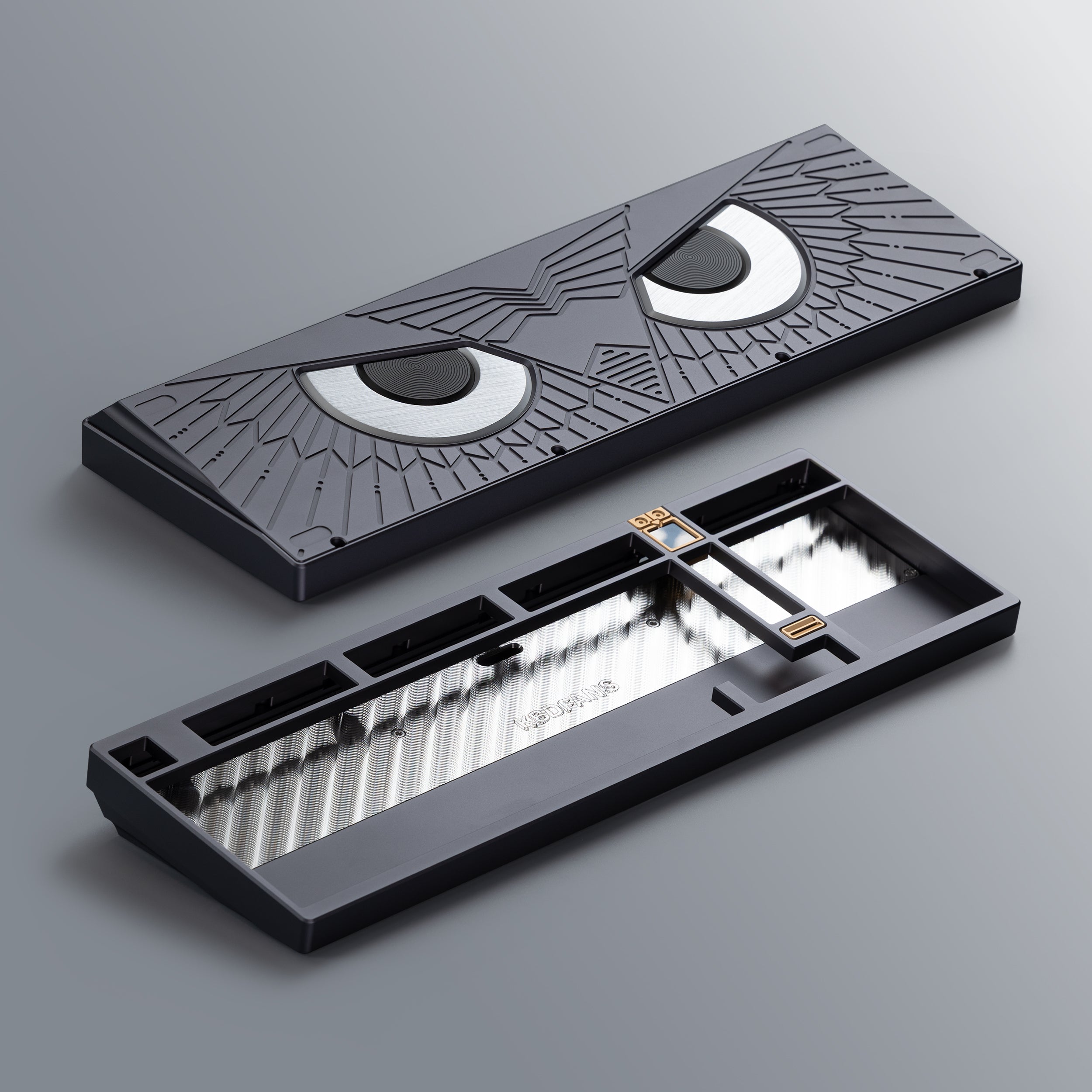

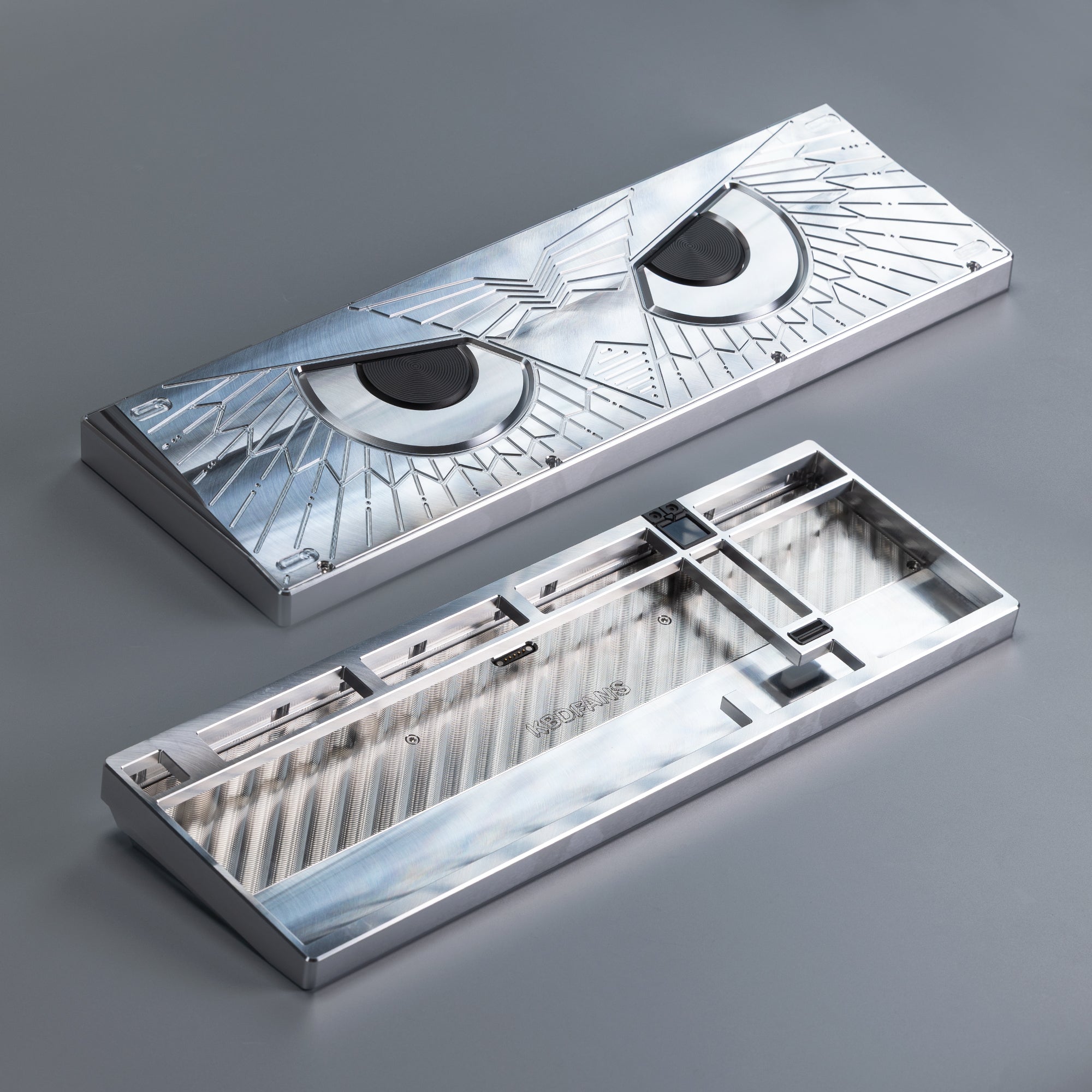

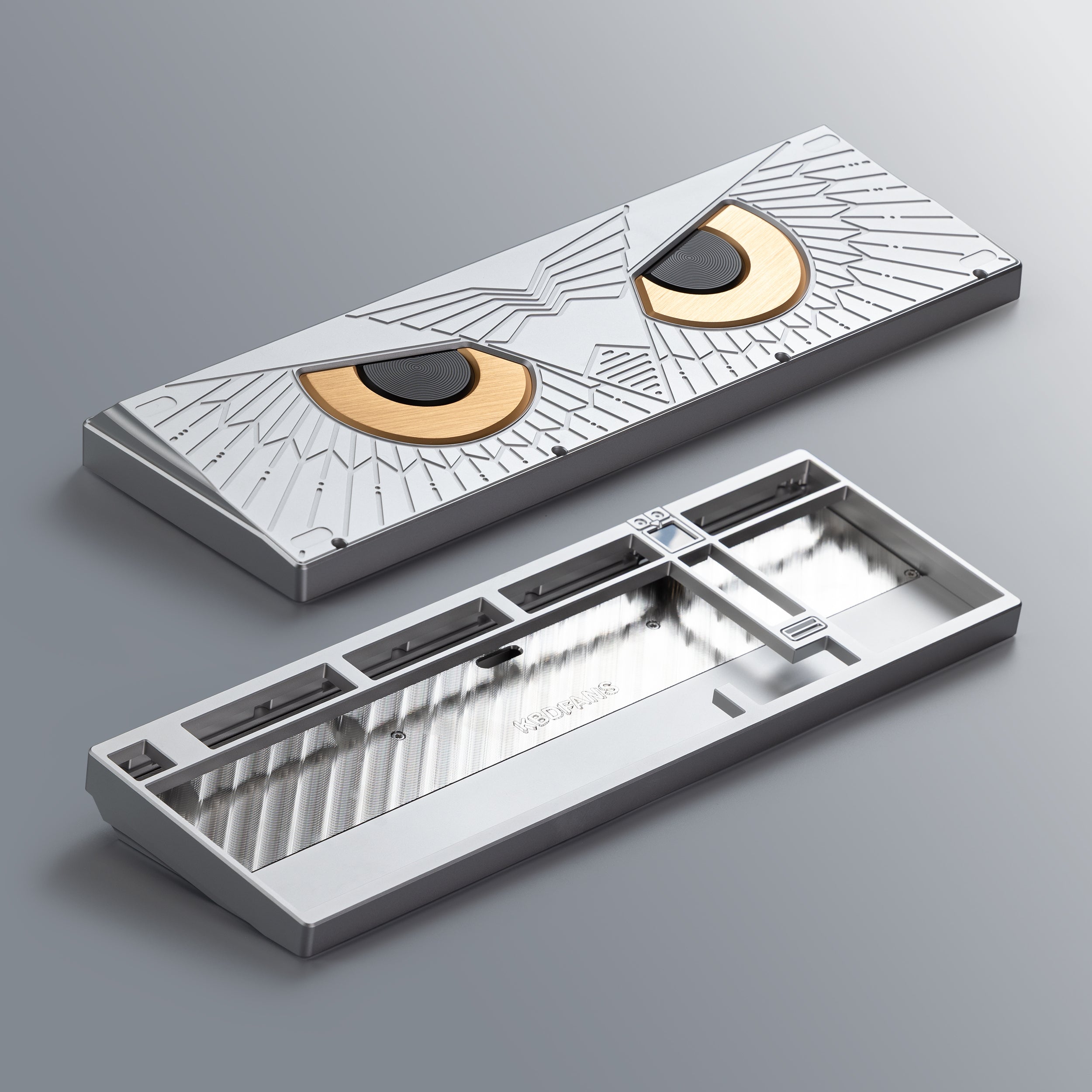

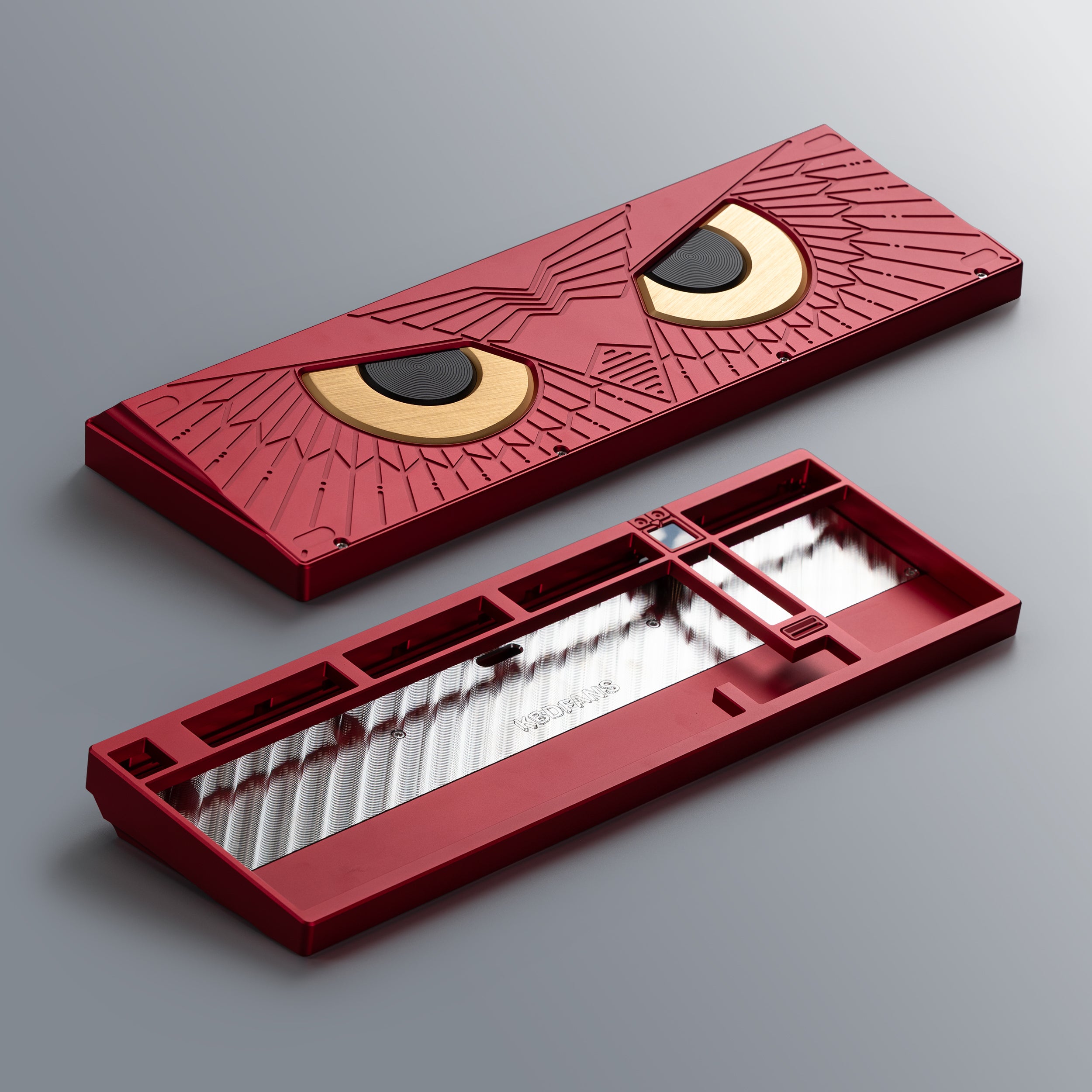

Internal Cover plate and rectangular Weight bar
Cover plate material options: Stainless Steel / Brass / Carbon Fiber

Internal Design: Each version comes standard with a stainless steel internal weight bar.
This design not only provides a substantial, premium typing feel but also offers a diverse range of unique acoustic profiles.

The stainless steel version, in particular, features exquisite "toolpath" engravings—a finely machined texture on its interior.
This hidden detail is a testament to a meticulous commitment to quality and a unified aesthetic throughout the entire build.
Exploded View

POGO pins LCD screen

Magnetic connector PCB

Layout

Specs:
  • Case material:Aluminum (anodized/e-coating)
  • Mounting style:Top Mount/PCB Silicone Gasket

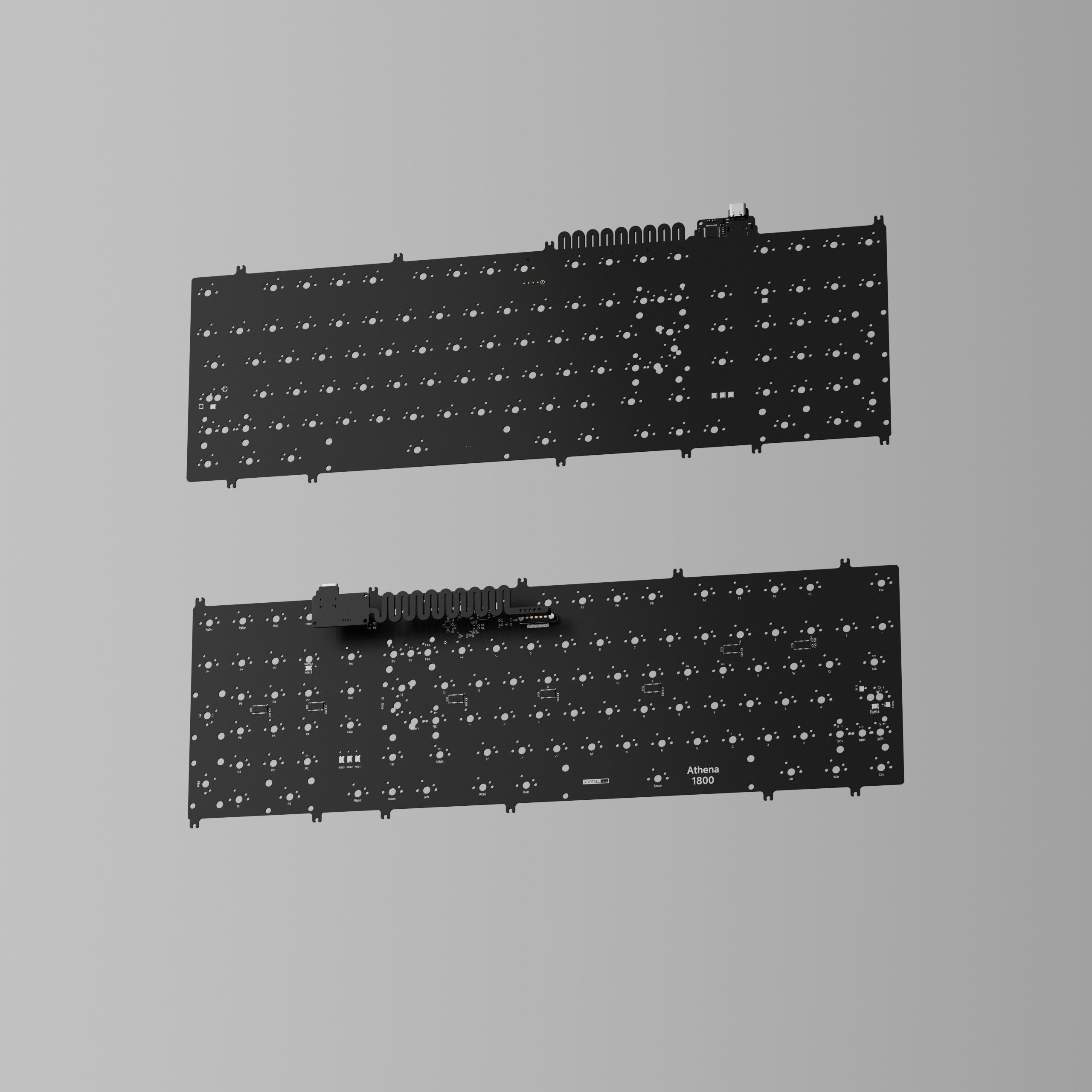

  • PCB: 1.6mm solder/ hotswap PCB, non flex-cut, USB-C interface, QMK/VIAL supported, includes Caps Lock key/Scroll Lock key RGB LCD indicator

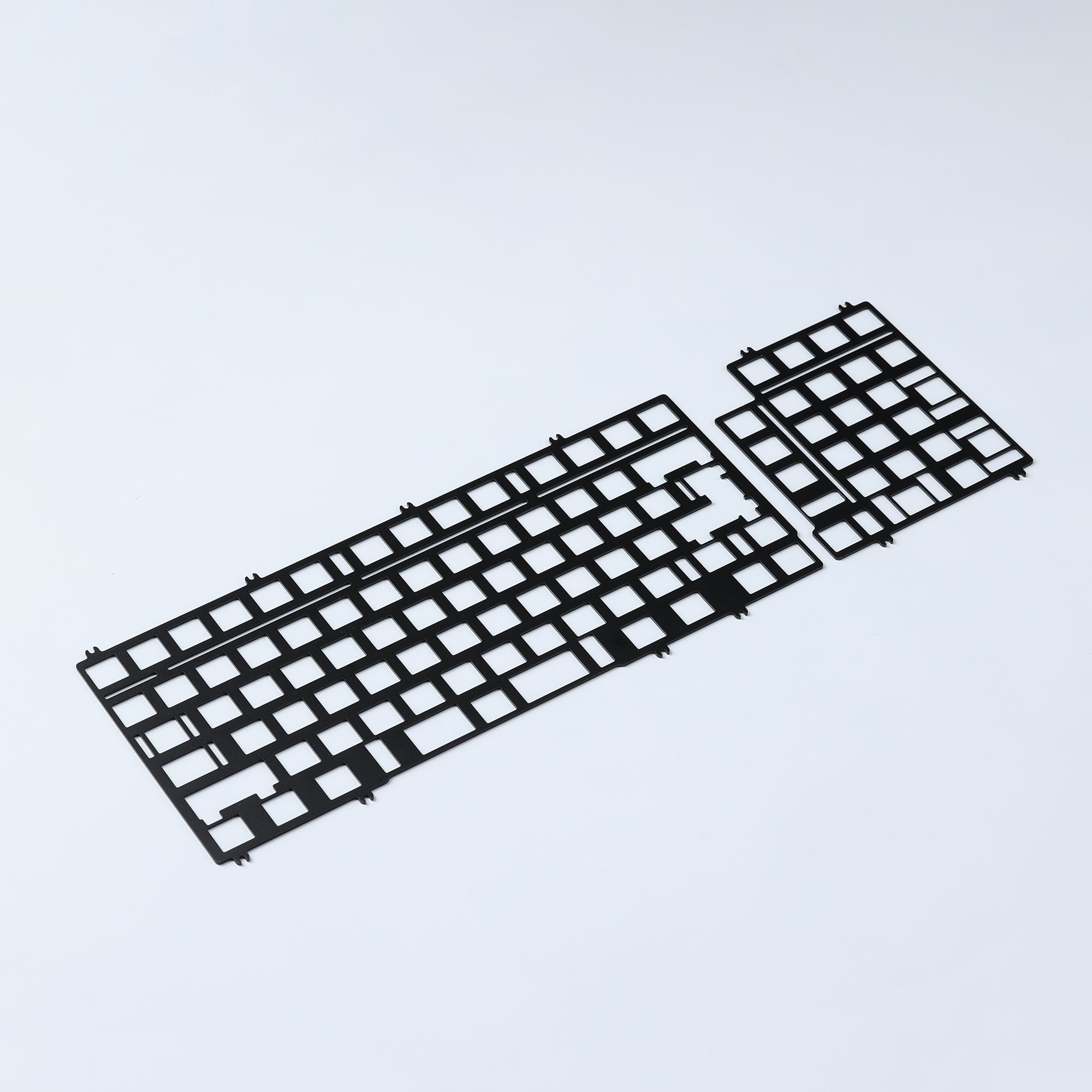

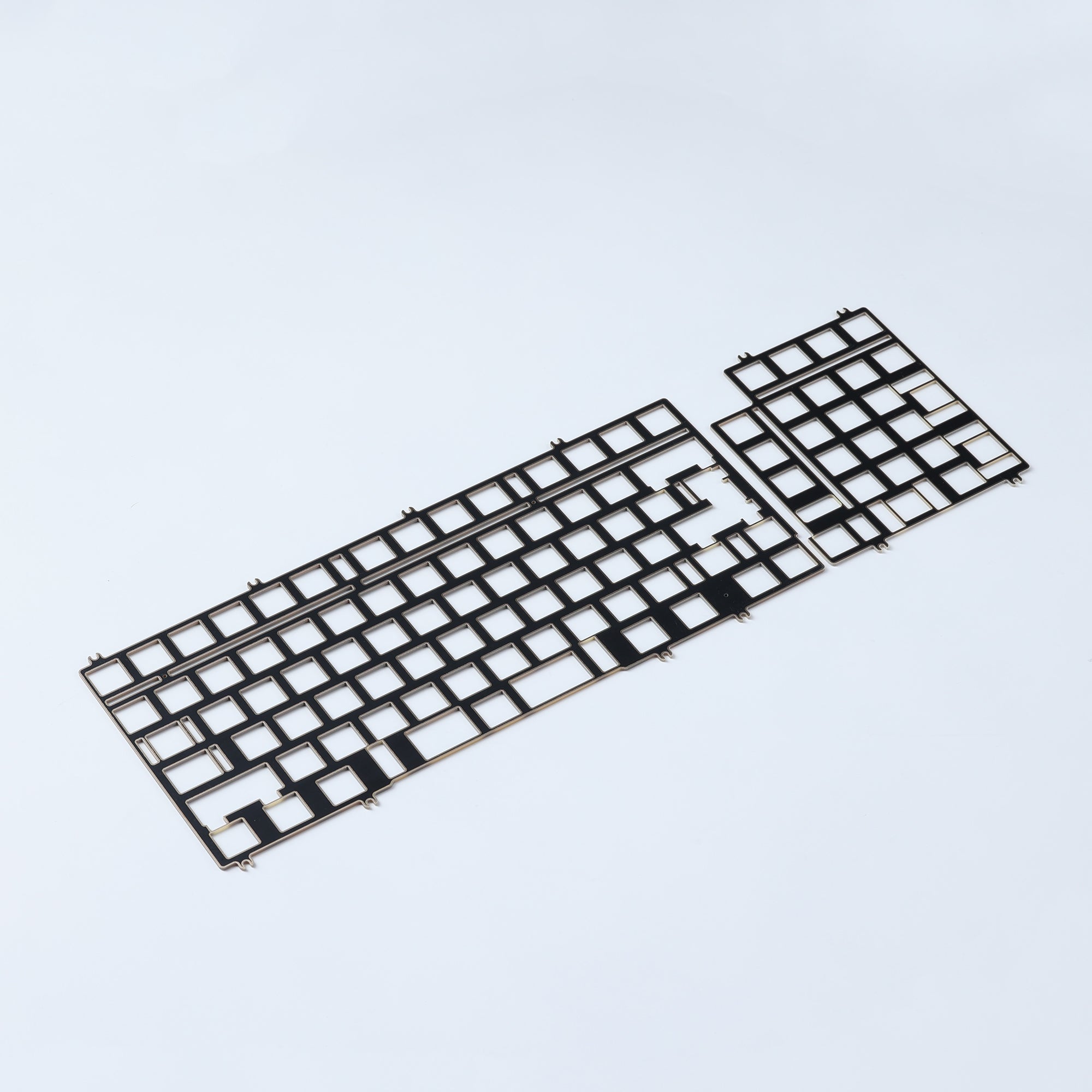

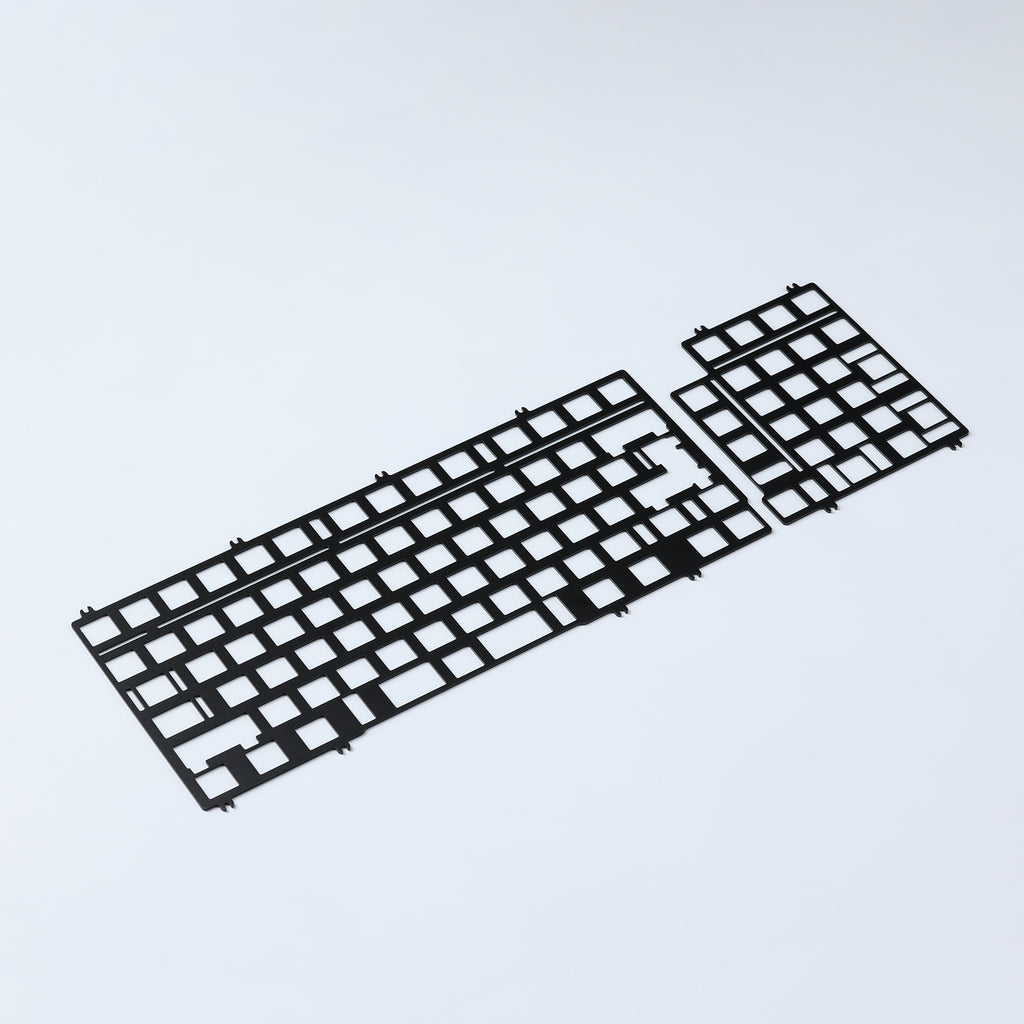

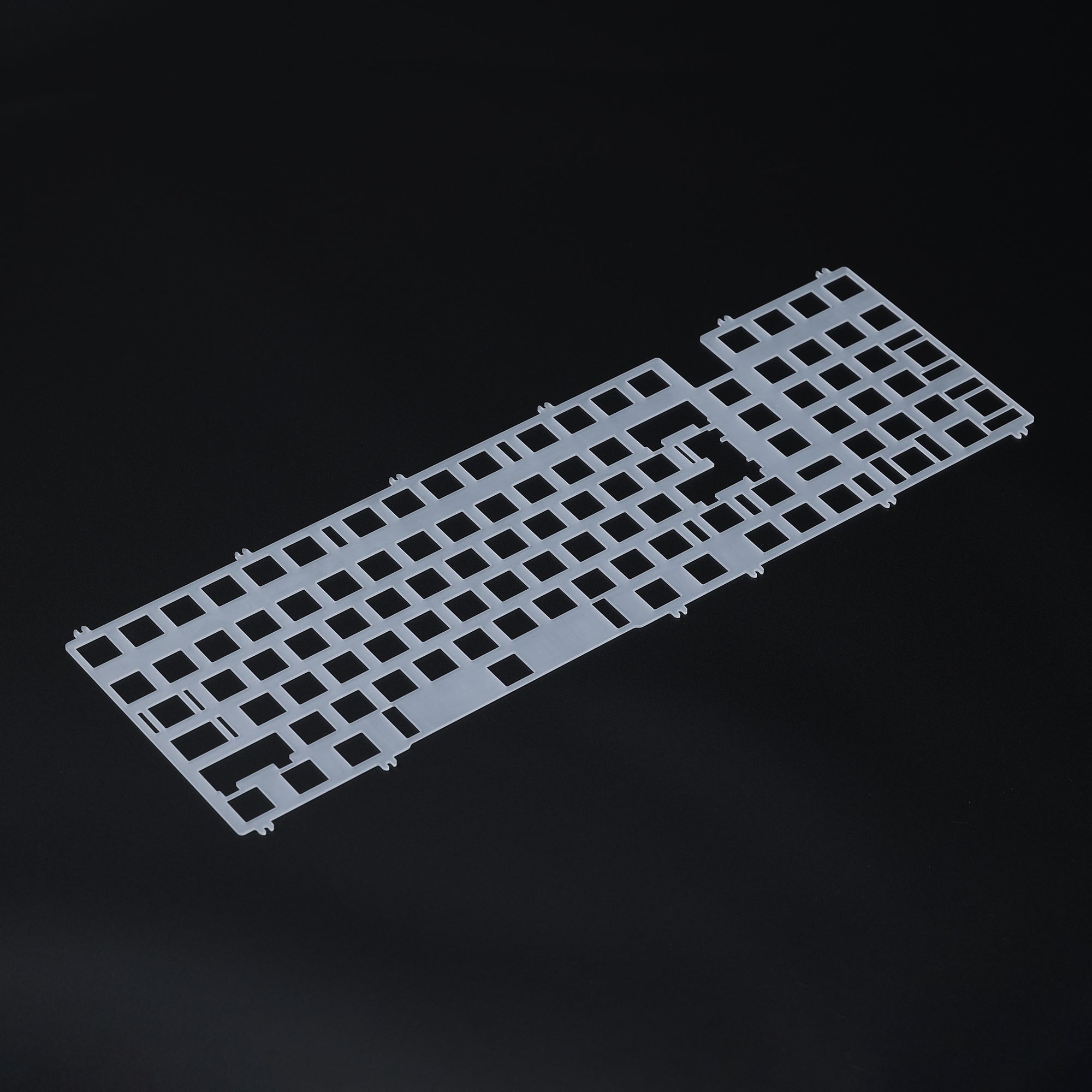

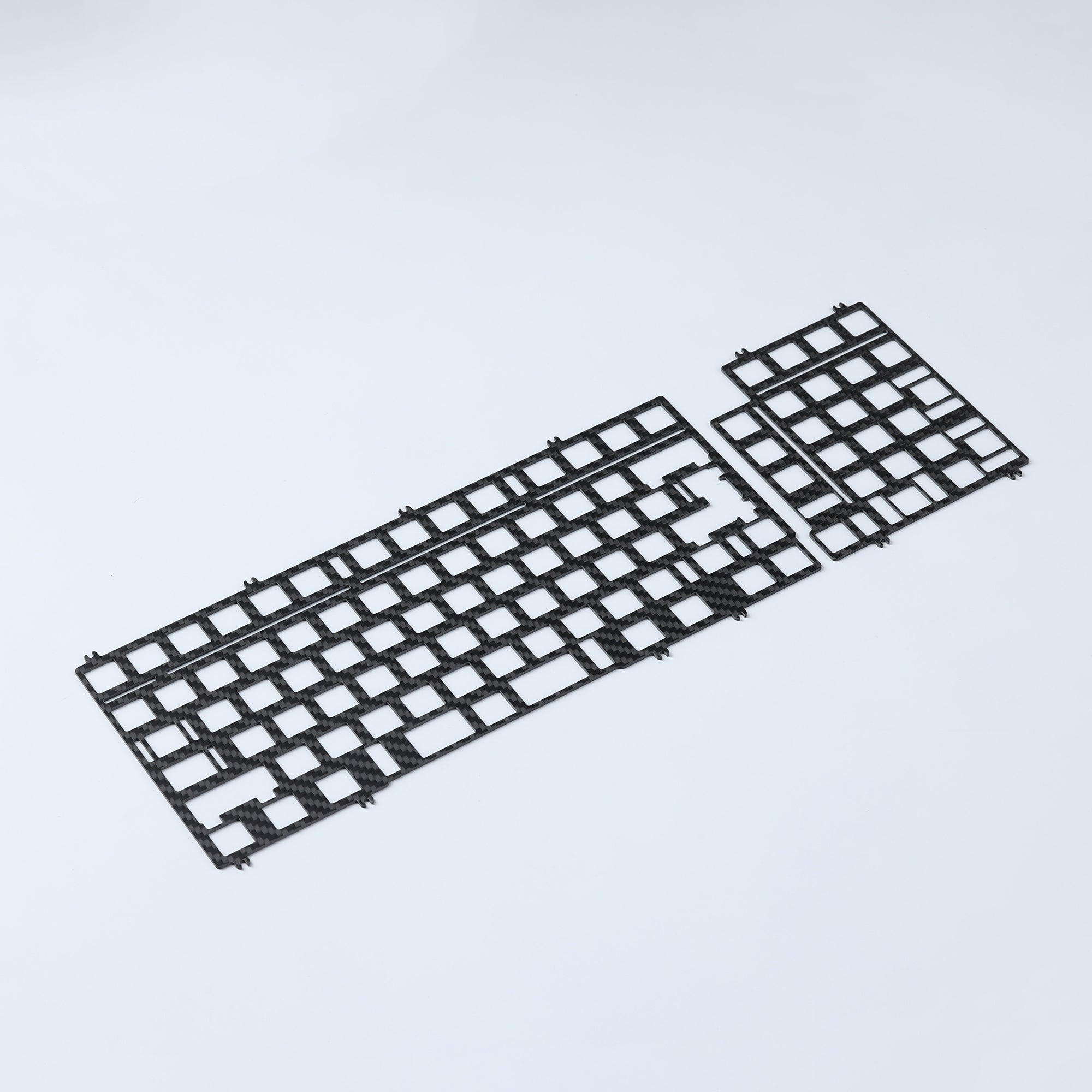

  • Plate:Alu/FR4/PC Plate
  • Typing angle:9 degree
  • Cover plate material options: Stainless Steel / Brass / Carbon Fiber
  • Weight after built:
    ≈2.5kg with Carbon Fiber cover plate
    ≈3kg with Stainless Steel cover plate
  • Designer:Wei
Update:
  • In production (06/13/2025)
What's include:
  • Top and bottom case x1
  • Stainless steel weight bar x1
  • Silicone gasket x1 set
  • Rubber feet x1 set
  • Solder / hotswap PCB x1
  • Daughterboard x1
  • Cover plate x1
  • Foam kit x1
  • Plate x1
  • LCD screen x1

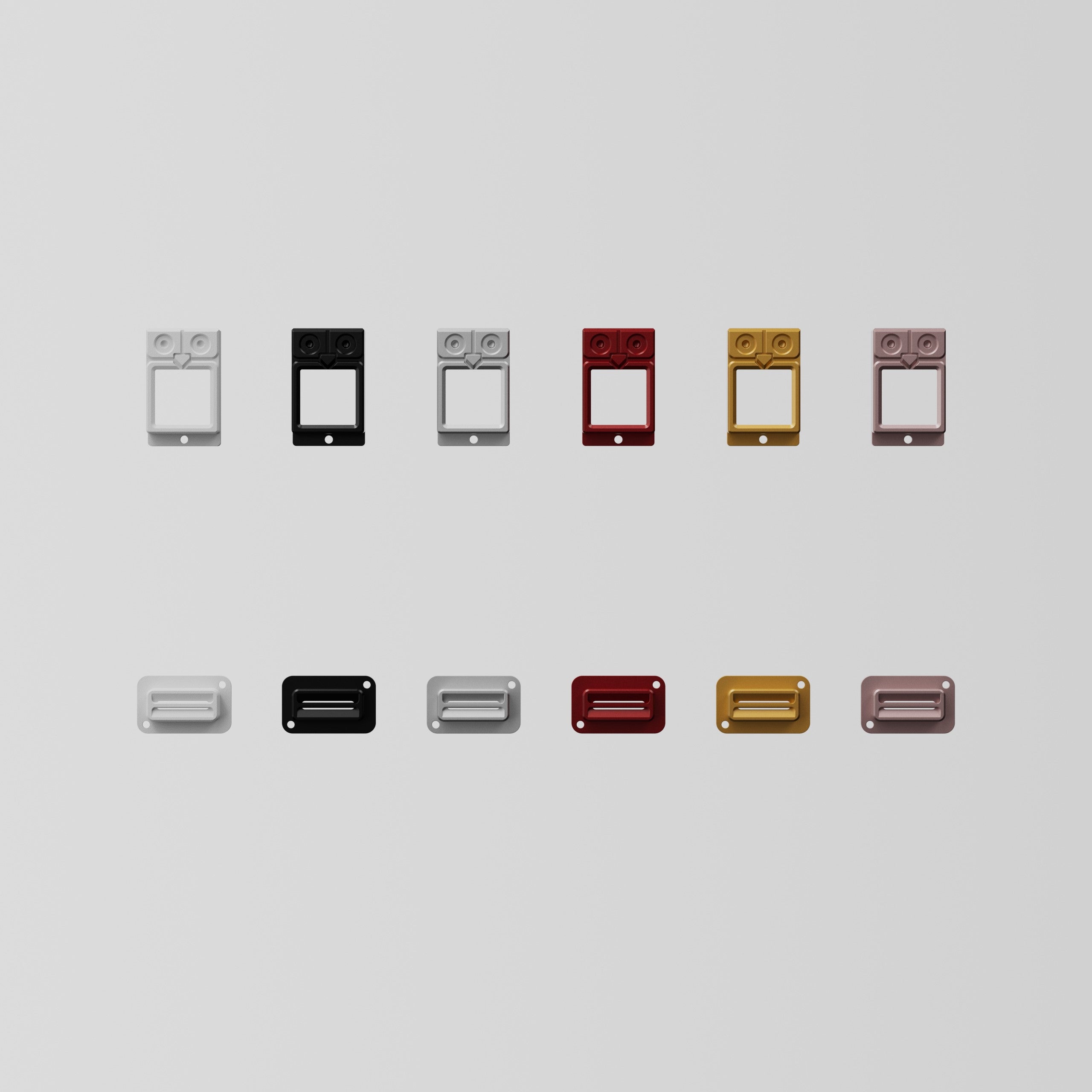

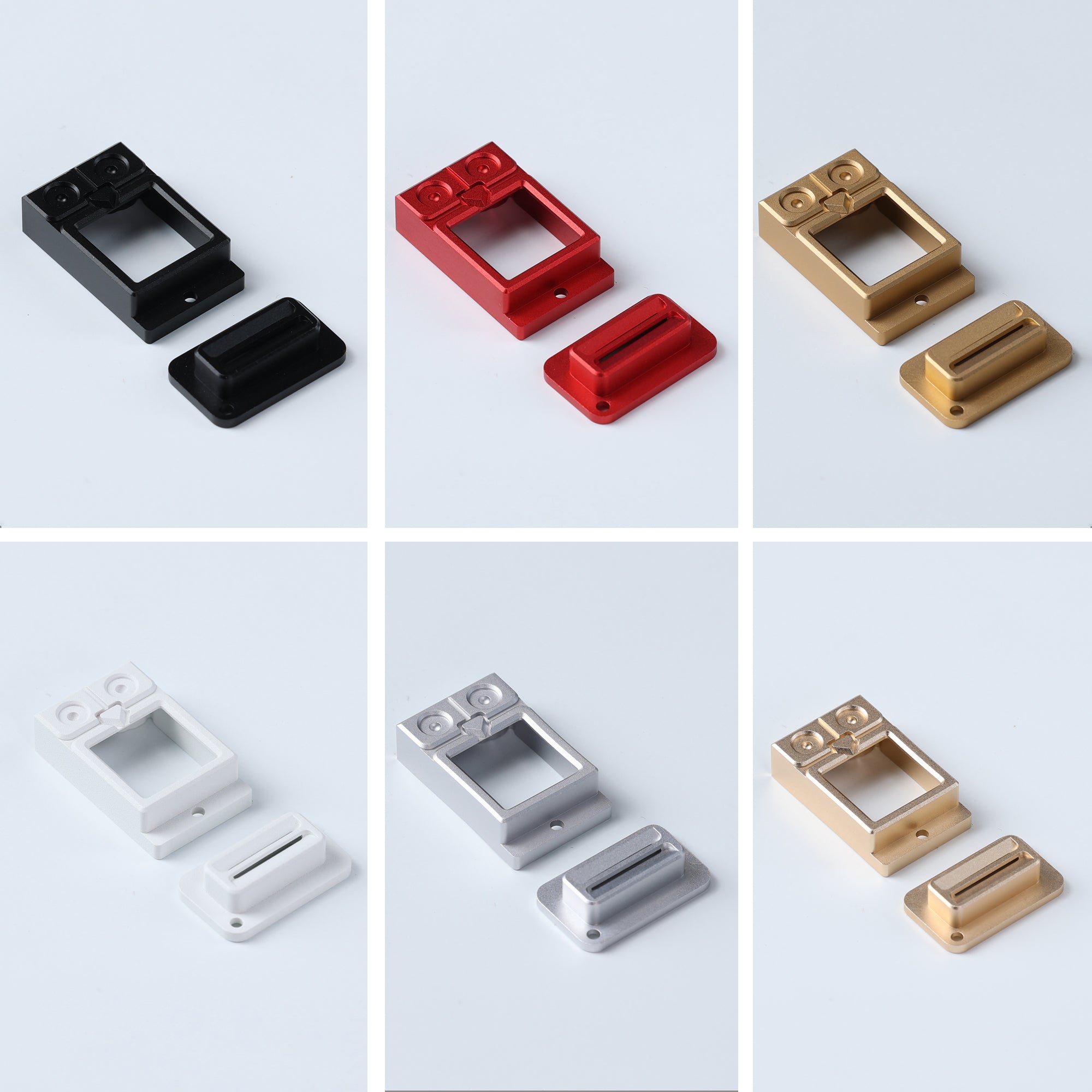

  • Bezel x1

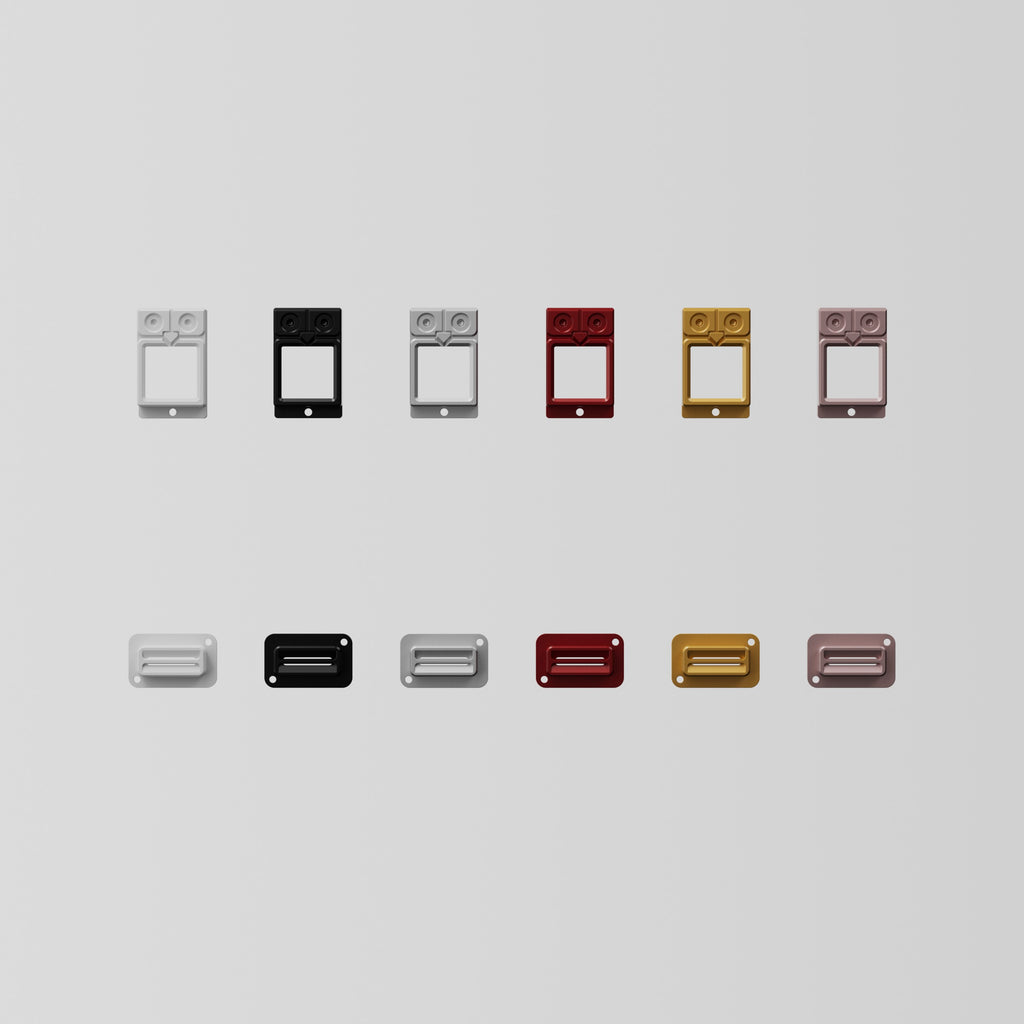

  • RGB grille x1

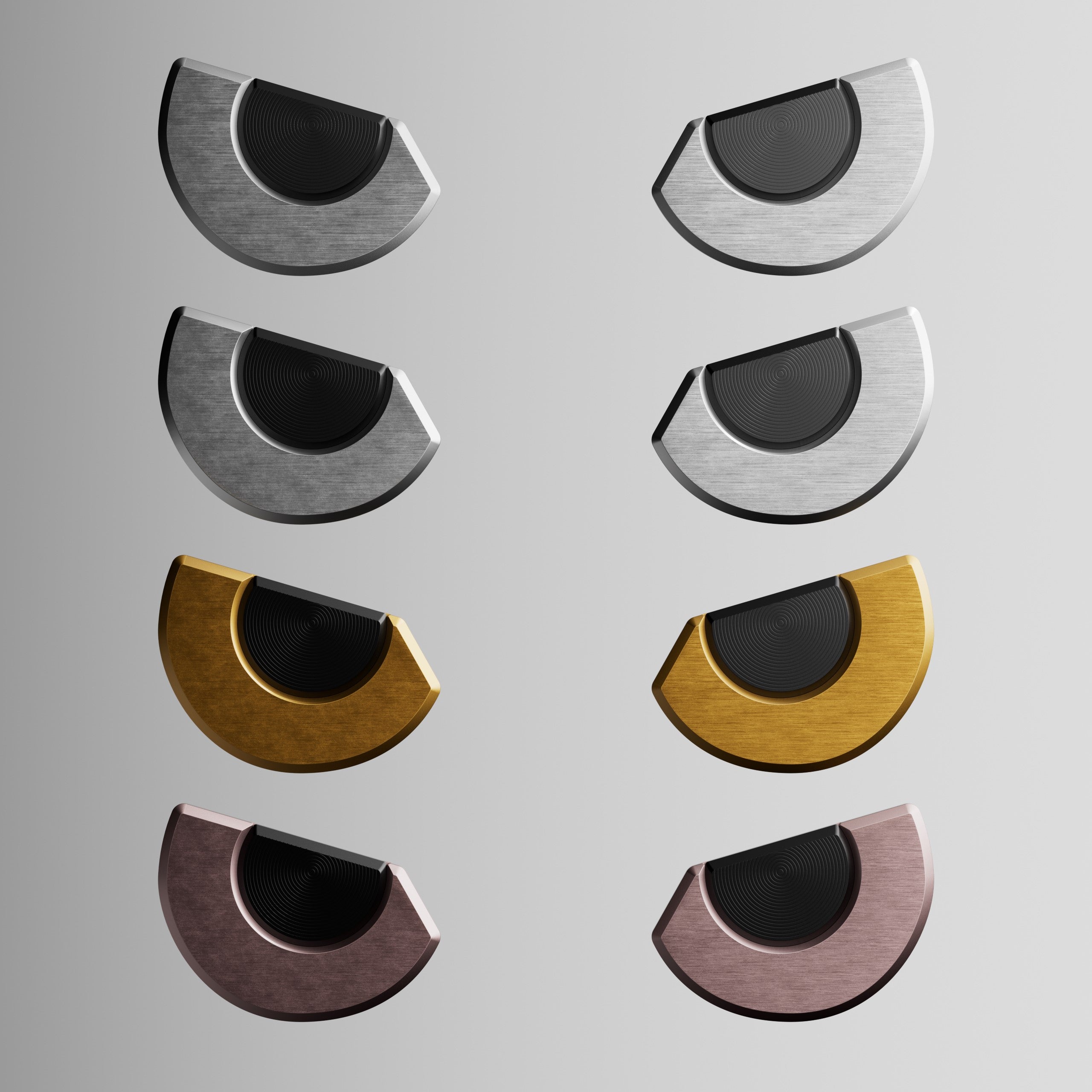

  • Aluminum pupil x1 set
  • Aluminum iris x1 set
  • Screws x1 set
Dimensions

Renders
